5.5KV 4R USA RANGE FUSE 5.5VFNHA4R 5-5VFNHA4R EATON ELECTRIC Motor fuse-link, medium voltage, 130 A, AC 5.5 ..
5.5KV 4R USA RANGE FUSE
55VFNHA4R
5-5VFNHA4R
EATON - MOELLER
1 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

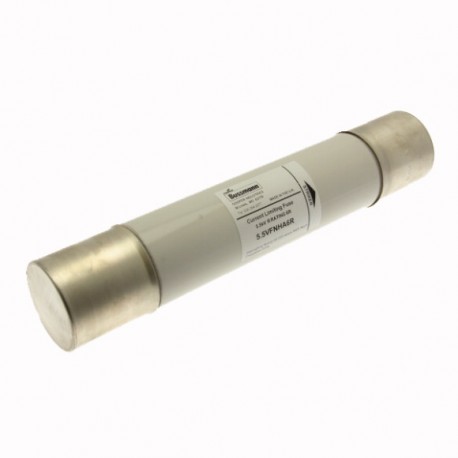

This Eaton Moeller 5.5KV 4R USA RANGE FUSE is an industrial motor protection fuse-link designed to safeguard medium voltage rotating machinery against severe overloads. Such high-capacity fuses are commonly integrated into motor control centers and distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 130 A
- Rated voltage (EF000228): 5.5 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 60 Hz
- Breaking capacity (EF005617): 60 kA
- Application (EF000041): Motor protection
- Length (EF001438): 403 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): IEEE
- Release characteristic (EF000889): R
- Installation technique (EF001474): Air
