5.5KV 40R 3" MS FUSE 1235 5.5VKNHV40R 5-5VKNHV40R EATON ELECTRIC Motor fuse-link, medium voltage, 700 A, AC ..
5.5KV 40R 3" MS FUSE 1235
55VKNHV40R
5-5VKNHV40R
EATON - MOELLER
1 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

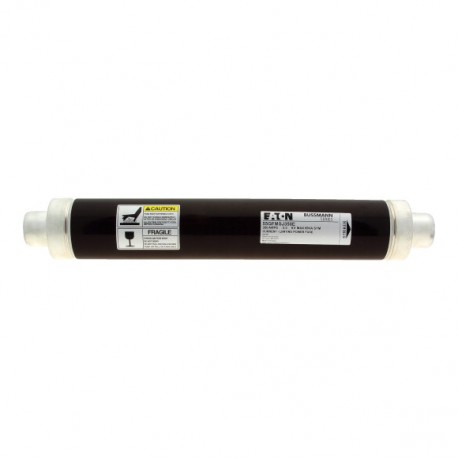

The Eaton Moeller 5.5KV 40R 3" MS FUSE 1235 is a high-performance motor fuse-link engineered for medium-voltage IEEE systems. Industrial motor circuits utilize these components to handle demanding operational loads while preventing severe damage during fault events.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 700 A
- Rated voltage (EF000228): 5.5 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 60 Hz
- Breaking capacity (EF005617): 0.06 kA
- Length (EF001438): 403 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): IEEE
- Release characteristic (EF000889): R
- Installation technique (EF001474): Air
