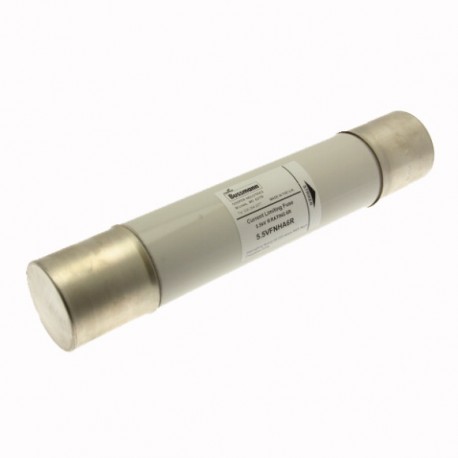

EATON - MOELLER 5.5KV 3R USA FULL RANGE 5.5KV 3R USA FULL RANGE 5.5VFNHA3R 5-5VFNHA3R EATON ELECTRIC Motor fuse-link, medium voltage, 100 A, AC 5.5 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5.5KV 3R USA FULL RANGE 5.5VFNHA3R 5-5VFNHA3R EATON ELECTRIC Motor fuse-link, medium voltage, 100 A, AC 5.5 ..

5.5KV 3R USA FULL RANGE

55VFNHA3R

5-5VFNHA3R

EATON - MOELLER

1 Pcs.

Motor fuse-link, medium voltage, 100 A, AC 5.5 kV, 76 x 403 mm, back-up, US, 3R, with striker 5.5KV 3R USA FULL RANGE Fuse, Motor fuse-link, medium voltage, 100 A, AC 5.5 kV, 76 x 403 mm, back-up, US, 3R, with striker, cylindrical, motor protection, ANSI C37-46, Breaking Capacity 60 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to meet IEEE standards for high-frequency industrial environments, the Eaton Moeller 5.5KV 3R USA FULL RANGE motor fuse-link protects heavy-duty motor circuits. Full-range medium-voltage fuses safely clear everything from low overload currents to high short-circuit faults. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 100 A
  • Rated voltage (EF000228): 5.5 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 60 Hz
  • Breaking capacity (EF005617): 60 kA
  • Application (EF000041): Motor protection
  • Length (EF001438): 403 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): IEEE
  • Release characteristic (EF000889): R
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 100 A, AC 5.5 kV, 60 kA, 76 x 403 mm, back-up, US, with striker, 3R
Fuse, Motor fuse-link, medium voltage, 100 A, AC 5.5 kV, 76 x 403 mm, back-up, US, 3R, with striker, cylindrical, motor protection, ANSI C37-46, Breaking Capacity 60 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
100 A
Rated voltage
AC 5.5 kV
Size
76 x 403 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
60 kA
usable for size/applications
motor protection
Release characteristic [class]
3R
Standard/Approval
US
Shape
cylindrical
Standards/Regulations
ANSI C37-46

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
100 A
Rated voltage
5.5 kV
Voltage type
AC
Rated frequency
60 - 60 Hz
Breaking capacity
60 kA
Utilization category
Other
Application
Motor protection
Length
403 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
IEEE
Release characteristic
R
Installation technique
Air
