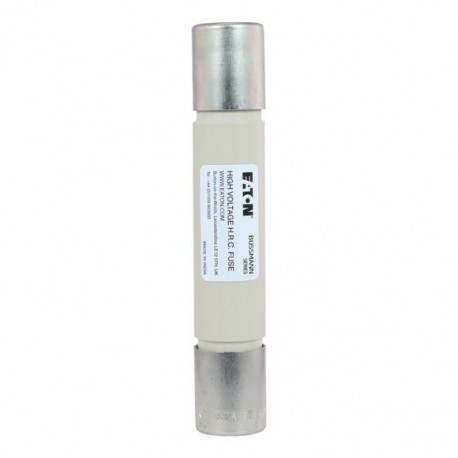

EATON - MOELLER 5.5KV 2A FUSE 5.5KV 2A FUSE 5.5ABWNA2E 5-5ABWNA2E EATON ELECTRIC cartridge fuse VT, MT, 2 A, AC 5.5 kV, 142 x 25.4 mm, bac.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5.5KV 2A FUSE 5.5ABWNA2E 5-5ABWNA2E EATON ELECTRIC cartridge fuse VT, MT, 2 A, AC 5.5 kV, 142 x 25.4 mm, bac..

5.5KV 2A FUSE

55ABWNA2E

5-5ABWNA2E

EATON - MOELLER

1 Pcs.

cartridge fuse VT, MT, 2 A, AC 5.5 kV, 142 x 25.4 mm, back-up, BS, IEC, US, 2E 5.5KV 2A FUSE 5.5ABWNA2E - VT fuse-link, medium voltage, 2 A, AC 5.5 kV, 142 x 25.4 mm, back-up, BS, IEC, US, 2E Fuse, VT fuse-link, medium voltage, 2 A, AC 5.5 kV, 142 x 25.4 mm, back-up, BS, IEC, US, 2E, cylindrical, type E, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, ANSI C37-41, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safeguarding voltage transformers in medium-voltage switchgear is the primary function of this Eaton Moeller 5.5KV 2A FUSE. These cartridge fuses are integrated into auxiliary circuits to ensure rapid isolation of potential overcurrents before they propagate through the system.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 2 A
  • Rated voltage (EF000228): 5.5 kV
  • Voltage type (EF000187): AC
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Auxiliary transformer protection
  • Length (EF001438): 142 mm
  • Diameter (EF000551): 25.4 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Release characteristic (EF000889): E
  • Installation technique (EF001474): Air

More info

▲
VT fuse-link, medium voltage, 2 A, AC 5.5 kV, 142 x 25.4 mm, back-up, BS, IEC, US, 2E
Fuse, VT fuse-link, medium voltage, 2 A, AC 5.5 kV, 142 x 25.4 mm, back-up, BS, IEC, US, 2E, cylindrical, type E, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, ANSI C37-41, Breaking Capacity 50 kA

General specifications
Product name
Eaton Bussmann series medium auxiliary fuse
Part no.
5.5ABWNA2E
EAN
5027590048408
Product Length/Depth
142 millimetre
Product height
25.4 millimetre
Product width
25.4 millimetre
Product weight
190 gram
Compliances
Contact Manufacturer
Certifications
IEC60282-1
Product Tradename
None
Product Type
Medium voltage auxiliary fuse
Product Sub Type
None
Electrical data
Amperage Rating
2 A
Voltage rating
5.5 kV
Breaking capacity
50 kA
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up
Resistance
18 ohms
Product specifications
Application
Protection of auxiliary transformers
Fuse indicator
Non Indicating
Fuse size
142 x 25.4 mm
Standard
British Standard
