> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 55CAV15E

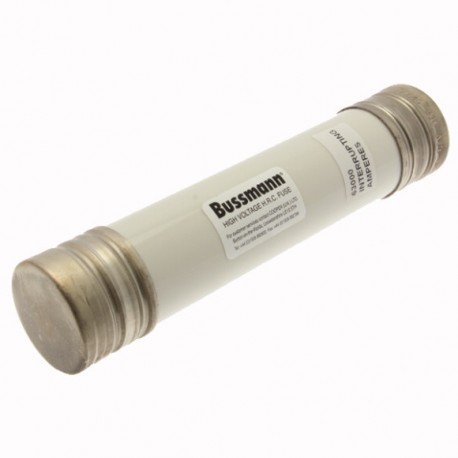

EATON - MOELLER 5.5KV 15AMP 7" CAV FUSE 5.5KV 15AMP 7" CAV FUSE 5.5CAV15E 5-5CAV15E EATON ELECTRIC VT fuse-link, medium voltage, 15 A, AC 5.5 kV, 18.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5.5KV 15AMP 7" CAV FUSE 5.5CAV15E 5-5CAV15E EATON ELECTRIC VT fuse-link, medium voltage, 15 A, AC 5.5 kV, 18..

5.5KV 15AMP 7" CAV FUSE

55CAV15E

5-5CAV15E

EATON - MOELLER

5 Pcs.

VT fuse-link, medium voltage, 15 A, AC 5.5 kV, 187 x 41.3 mm, back-up, BS, IEC, US, 15E 5.5KV 15AMP 7" CAV FUSE Fuse, VT fuse-link, medium voltage, 15 A, AC 5.5 kV, 187 x 41.3 mm, back-up, BS, IEC, US, 15E, cylindrical, type E, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, ANSI C37-41, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
VT fuse-link, medium voltage, 15 A, AC 5.5 kV, 50 kA, 187 x 41.3 mm, back-up, BS, IEC, US, type E, 15E
Fuse, VT fuse-link, medium voltage, 15 A, AC 5.5 kV, 187 x 41.3 mm, back-up, BS, IEC, US, 15E, cylindrical, type E, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, ANSI C37-41, Breaking Capacity 50 kA

Delivery program

Product range
Fuse
Basic function
VT fuse-link
Field of application
medium voltage
Rated current [I]
15 A
Rated voltage
AC 5.5 kV
Size
187 x 41.3 mm
Utilization category
back-up
Description
type E
Breaking Capacity
50 kA
usable for size/applications
voltage and auxiliary transformers
Release characteristic [class]
15E
Standard/Approval
BS
IEC
US
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1
ANSI C37-41

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
15 A
Rated voltage
5.5 kV
Voltage type
AC
Rated frequency
60 - 60 Hz
Breaking capacity
50 kA
Utilization category
Other
Application
Auxiliary transformer protection
Length
187 mm
Diameter
41.3 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
IEC
Release characteristic
E
Installation technique
Air

ETIM for 5.5CAV15E Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 15 A
Rated voltage (EF000228) 5.5 kV
Voltage type (EF000187) AC
Breaking capacity (EF005617) 50 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Auxiliary transformer protection
Length (EF001438) 187 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) No
Standard (EF009322) IEC
Release characteristic (EF000889) E
Installation technique (EF001474) Air
