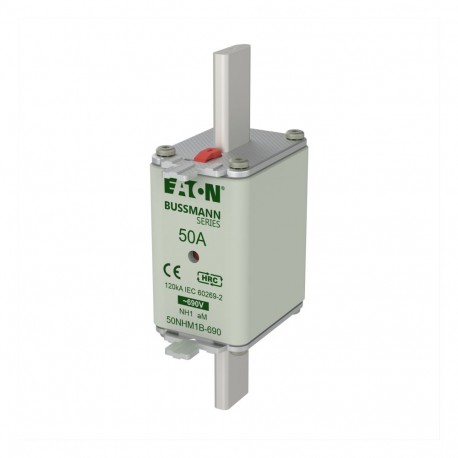

NH FUSE 50A 690V aM SIZE1 50NHM1B-690 EATON ELECTRIC Fuse-link, low voltage, 100 A, AC 690 V, NH00, aM, IEC,..

NH FUSE 50A 690V aM SIZE1

50NHM1B690

50NHM1B-690

EATON - MOELLER

3 Pcs.

Fuse-link, low voltage, 100 A, AC 690 V, NH00, aM, IEC, dual indicator NH FUSE 50A 690V aM SIZE1 Fuse-link, LV, 50 A, AC 690 V, NH1, aM, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 50 A, AC 690 V, NH1, aM, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safeguard motor control centers and associated switchgear with the Eaton Moeller NH FUSE 50A 690V aM SIZE1. These specialized protective elements offer high interrupting capacity for industrial motor circuits prone to high initial starting currents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH1
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 50 A
  • Rated voltage AC (EF007682): 690 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 3 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHM1B-690
EAN
5027590483506
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
407.3333333 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
50 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class aM
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH1
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
