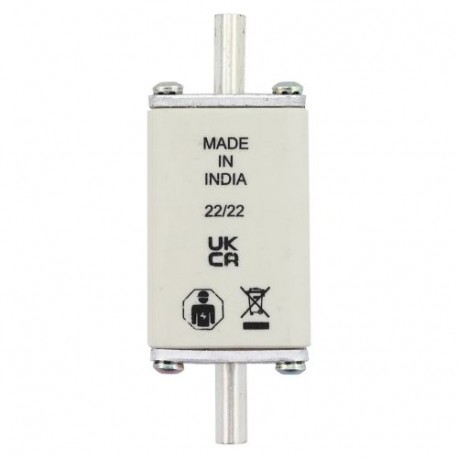

EATON - MOELLER NH FUSE 50A 690V gG SIZE 00 NH FUSE 50A 690V gG SIZE 00 50NHG00B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690 V, NH00, gL/gG, IEC, du.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 50A 690V gG SIZE 00 50NHG00B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690 V, NH00, gL/gG, IEC, du..

NH FUSE 50A 690V gG SIZE 00

50NHG00B690

50NHG00B-690

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 100 A, AC 690 V, NH00, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 50AMP 690V gG SIZE 00 NH FUSE 50AMP 690V gG SIZE 00 - Fuse-link, low voltage, 50 A, AC 690 V, 120 kA, NH00, gL/gG, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 50 A, AC 690 V, NH00, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller NH FUSE 50A 690V gG SIZE 00 fuse-link acts as a critical safety device in industrial electrical systems, designed to interrupt overload currents safely. General-purpose gG fuses protect conductors and connected machinery from thermal degradation during faults.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH00
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 50 A
  • Rated voltage AC (EF007682): 690 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 5 W

More info

▲
EL-Nummer (Norway)
0001664107
Fuse-link, low voltage, 50 A, AC 690 V, 120 kA, NH00, gL/gG, IEC, dual indicator, live gripping lugs
Fuse, fuse-link, low voltage, 50 A, AC 690 V, NH00, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
50 A
Rated voltage
AC 690 V
Construction size
NH00
Utilization category
gL/gG
Status indicator
dual indicator
Description
live gripping lugs
Breaking Capacity
120 kA
usable for size/applications
industrial
Standard/Approval
IEC
Shape
square body with knife blade contacts
Standards/Regulations
IEC 60269-2 fuse system A
DIN 43620
VDE 0636-2

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH00
Rated current
50 A
Rated voltage
690 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No

Product Datasheet
