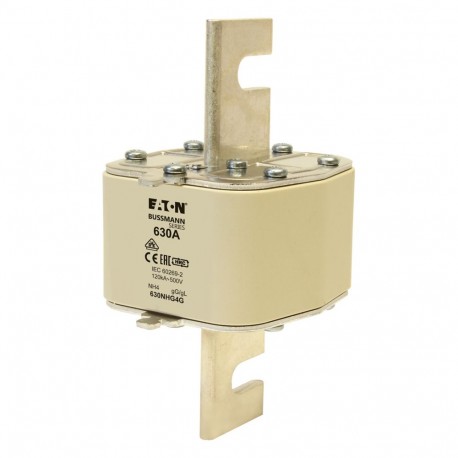

EATON - MOELLER 500V 630A NH4 FUSE gG 500V 630A NH4 FUSE gG 630NHG4G EATON ELECTRIC Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC, single indic.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

500V 630A NH4 FUSE gG 630NHG4G EATON ELECTRIC Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC, single indic..

500V 630A NH4 FUSE gG

630NHG4G

630NHG4G

EATON - MOELLER

1 Pcs.

Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC, single indicator, live gripping lugs 500V 630A NH4 FUSE gG Fuse, Fuse-link, low voltage, 630 A, AC 500 V, NH4, gL/gG, IEC, single (top) indicator system, square-body with slotted blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safeguard large industrial power distribution networks utilizing this Eaton Moeller 500V 630A NH4 FUSE gG. High-capacity NH fuses offer robust fault clearing capabilities for heavy-duty commercial and industrial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH4
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 630 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Top fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 47 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
630NHG4G
Model Code
500V 630A NH4 FUSE gG
EAN
5027590484923
Product Length/Depth
130 mm
Product Height
115 mm
Product Width
220 mm
Product Weight
2173 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
630 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH2
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Product Datasheet
