EATON - MOELLER 500V 1000A NH4 FUSE gG 500V 1000A NH4 FUSE gG 1000NHG4G EATON ELECTRIC Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC, single ind.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

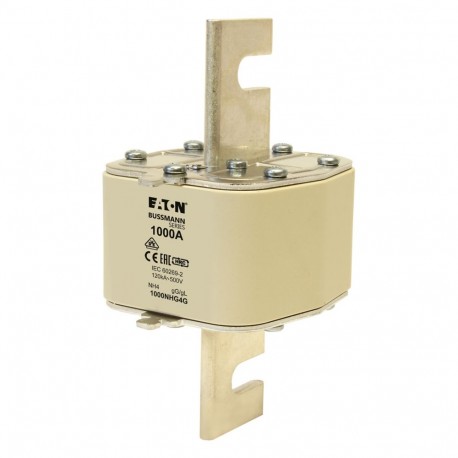

500V 1000A NH4 FUSE gG 1000NHG4G EATON ELECTRIC Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC, single ind..

500V 1000A NH4 FUSE gG

1000NHG4G

1000NHG4G

EATON - MOELLER

1 Pcs.

Fuse-link, LV, 1000 A, AC 500 V, NH4, gL/gG, IEC, single indicator, live gripping lugs 500V 1000A NH4 FUSE gG Fuse, Fuse-link, low voltage, 1000 A, AC 500 V, NH4, gL/gG, IEC, single (top) indicator system, square-body with slotted blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller high-capacity fuse-link, identified as part 500V 1000A NH4 FUSE gG, is engineered for heavy industrial power distribution networks requiring robust short-circuit protection. These large-format fuses are commonly integrated into main incoming switchboards and high-amperage industrial feeder circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH4
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 1000 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Top fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 80 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
1000NHG4G
Model Code
500V 1000A NH4 FUSE gG
EAN
5027590427494
UPC
051712295604
Product Length/Depth
200 mm
Product Height
115 mm
Product Width
102 mm
Product Weight
2196 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
1000 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH4
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD4-S NH Fuse base
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
