NH FUSE 500A 690V AM SIZE 3 500NHM3B-690 EATON ELECTRIC Fuse-link, low voltage, 100 A, AC 690 V, NH00, aM, I..

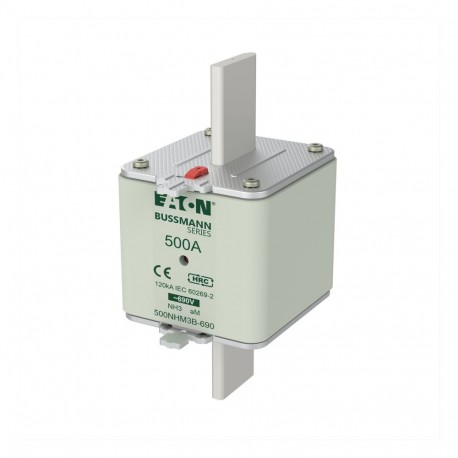

NH FUSE 500A 690V AM SIZE 3
500NHM3B690
500NHM3B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for motor and switchgear protection, the Eaton Moeller NH FUSE 500A 690V AM SIZE 3 is a robust low-voltage fuse link utilized in heavy industrial electrical architectures. This category of fuse is commonly deployed in motor control centers to safely manage high startup surges while offering dependable backup protection against short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH3
- Voltage type (EF000187): AC
- Rated current (EF000227): 500 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 36 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
