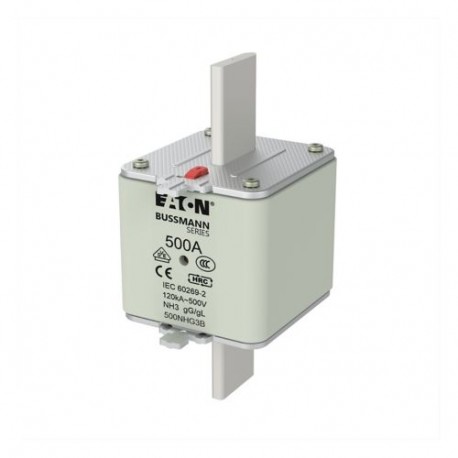

EATON - MOELLER NH FUSE 500A 500V GG/GL SIZE 3 NH FUSE 500A 500V GG/GL SIZE 3 500NHG3B EATON ELECTRIC Fuse-link, LV, 500 A, AC 500 V, NH3, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 500A 500V GG/GL SIZE 3 500NHG3B EATON ELECTRIC Fuse-link, LV, 500 A, AC 500 V, NH3, gL/gG, IEC, dual..

NH FUSE 500A 500V GG/GL SIZE 3

500NHG3B

500NHG3B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 500 A, AC 500 V, NH3, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 500A 500V GG/GL SIZE 3 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 500A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
500NHG3B
EAN
5027590482745
UPC
051712626248
Product Length/Depth
150 mm
Product Height
86 mm
Product Width
71 mm
Product Weight
1027 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
500 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH01
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0235

ETIM for 500NHG3B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH3
Voltage type (EF000187) AC
Rated current (EF000227) 500 A
Rated voltage AC (EF007682) 500 V
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
