View larger
Images are for illustrative purposes only. Please refer to data sheet for details

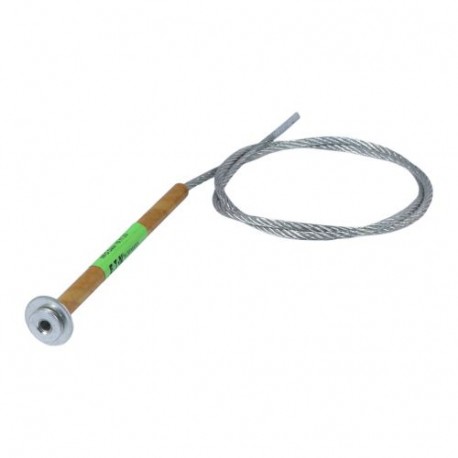

46KV 8A EXPULSION LINK 46TB8 EATON ELECTRIC Expulsion fuse-link, medium voltage, 8 A, AC 46 kV, 787 mm, ANSI..
46KV 8A EXPULSION LINK
46TB8
46TB8
EATON - MOELLER
25 Pcs.
Expulsion fuse-link, medium voltage, 8 A, AC 46 kV, 787 mm, ANSI, K fast, style BR termination
46KV 8A EXPULSION LINK
Expulsion fuse-link, medium voltage, 8 A, AC 46 kV, 787 mm, ANSI, T slow
Fuse, Expulsion fuse-link, medium voltage, 8 A, AC 46 kV, 787 mm, ANSI, T slow, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
46TB8
EAN
5027590481687
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
20.04 g
Certifications
ANSI/IEEE Std C37.42
Electrical data
Amperage Rating
8 A
Voltage rating
46 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz
Product specification
Construction size
787 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Green
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 8 A |
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | T |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
