> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 46KB80

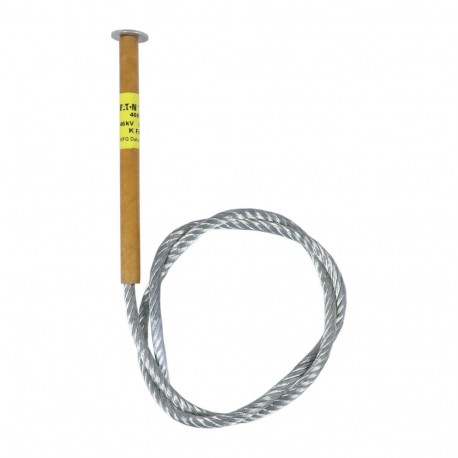

EATON - MOELLER 46KV 80A LK 46KV 80A LK 46KB80 EATON ELECTRIC Cartridge fuse, expulsion, MT, 80 A, AC 46 kV, 787 mm, ANSI a, K fast View larger
Images are for illustrative purposes only. Please refer to data sheet for details

46KV 80A LK 46KB80 EATON ELECTRIC Cartridge fuse, expulsion, MT, 80 A, AC 46 kV, 787 mm, ANSI a, K fast

46KV 80A LK

46KB80

46KB80

EATON - MOELLER

10 Pcs.

Cartridge fuse, expulsion, MT, 80 A, AC 46 kV, 787 mm, ANSI a, K fast Fuse cartridge ejection, MT, 80 A, AC 46 kV, 787 mm, ANSI, K fast 46KB80 - Expulsion fuse-link, medium voltage, 80 A, AC 46 kV, 787 mm, ANSI, K fast, style B termination Fuse, Expulsion fuse-link, medium voltage, 80 A, AC 46 kV, 787 mm, ANSI, K fast, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Expulsion fuse-link, medium voltage, 80 A, AC 46 kV, 787 mm, ANSI, K fast, style B termination
Fuse, Expulsion fuse-link, medium voltage, 80 A, AC 46 kV, 787 mm, ANSI, K fast, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Delivery program

Product range
Fuse
Basic function
Expulsion fuse-link
Field of application
medium voltage
Rated current [I]
80 A
Rated voltage
AC 46 kV
Size
787 mm
Description
fixed NEMA button head link
Breaking Capacity
8 kA
usable for size/applications
protection of transformer primary side, feeder, capacitor bank
Release characteristic [class]
K fast
Standard/Approval
ANSI
Standards/Regulations
ANSI C37-42

ETIM for 46KB80 Circuit breakers and fuses (EC003611)
Feature Name Feature Value
Rated current (EF000227) 80 A
Rated voltage (EF000228) 46 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Release characteristic (EF000889) K
Type of termination (EF012540) Fixed buttonhead
Standard (EF009322) ANSI
