> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 46KBR75

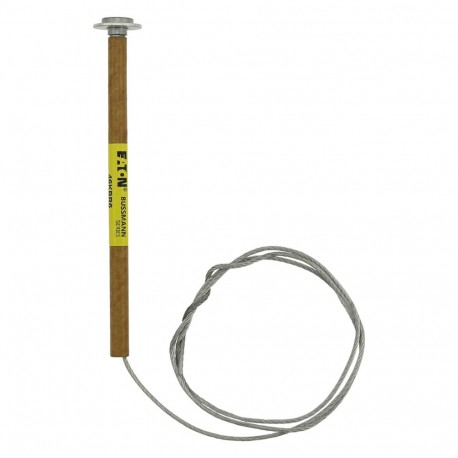

EATON - MOELLER 46KBR7.5 46KBR7.5 46KBR7-5 EATON ELECTRIC Expulsion fuse-link, medium voltage, 7.5 A, AC 46 kV, 787 mm, ANSI, K fast View larger
Images are for illustrative purposes only. Please refer to data sheet for details

46KBR7.5 46KBR7-5 EATON ELECTRIC Expulsion fuse-link, medium voltage, 7.5 A, AC 46 kV, 787 mm, ANSI, K fast

46KBR7.5

46KBR75

46KBR7-5

EATON - MOELLER

25 Pcs.

46KV 7.5A REMOVABLE B/H EXPULSION LINK 46KBR7.5 - Expulsion fuse-link, medium voltage, 7.5 A, AC 46 kV, 787 mm, ANSI, K fast Fuse, Expulsion fuse-link, medium voltage, 7.5 A, AC 46 kV, 787 mm, ANSI, K fast, removable NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Expulsion fuse-link, medium voltage, 7.5 A, AC 46 kV, 787 mm, ANSI, K fast
Fuse, Expulsion fuse-link, medium voltage, 7.5 A, AC 46 kV, 787 mm, ANSI, K fast, removable NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

General specifications
Product name
Eaton Bussmann series medium voltage expulsion fuse
Part no.
46KBR7.5
EAN
5027590481229
Product Length/Depth
787 millimetre
Product height
19.1 millimetre
Product width
19.1 millimetre
Product weight
25.24 gram
Compliances
ANSI C37.42
Certifications
Contact Manufacturer
Product Tradename
None
Product Type
Medium voltage expulsion fuse
Product Sub Type
None
Electrical data
Amperage Rating
7.5 A
Voltage rating
46 kV
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Product specifications
Application
Primary side transformer protection, feeder protection, capacitor bank protection
Standard
ANSI
Type of termination
Removable buttonhead

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Expulsion fuse-link, medium voltage (EC003611)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Safety fuse systems (unspecified) ([email protected] [BAB265011])
Rated current
7.5 A
Rated voltage
46 kV
Voltage type
AC
Rated frequency
50 - 60 Hz
Release characteristic
K
Type of termination
Removable buttonhead
Standard
ANSI

ETIM for 46KBR7.5 Circuit breakers and fuses (EC003611)
Feature Name Feature Value
Rated current (EF000227) 7.5 A
Rated voltage (EF000228) 46 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Release characteristic (EF000889) K
Type of termination (EF012540) Removable buttonhead
Standard (EF009322) ANSI

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
