View larger
Images are for illustrative purposes only. Please refer to data sheet for details

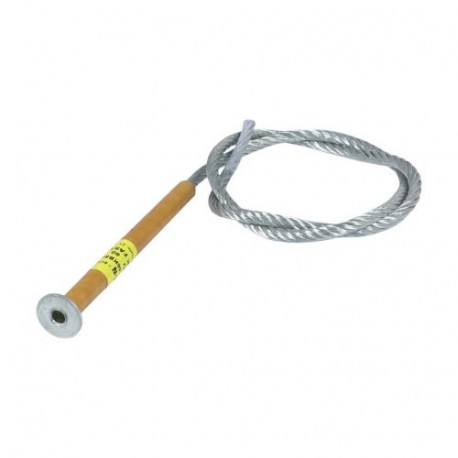

46KV 7.5A EXPULSION LINK 46KB7.5 Medium Voltage Expulsion Fuse Links EATON ELECTRIC Expulsion fuse-link, med..
46KV 7.5A EXPULSION LINK
46KB75
Medium Voltage - Expulsion Fuse Links
EATON - MOELLER
25 Pcs.
Expulsion fuse-link, medium voltage, 8 A, AC 15 kV, 533 mm, ANSI, K fast, style D termination
46KV 7.5A EXPULSION LINK
46KV 7.5A EXPULSION LINK - Expulsion fuse-link, medium voltage
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Expulsion fuse-link, medium voltage
Fuse, Expulsion fuse-link, medium voltage, 7.5 A, AC 46 kV, 787 mm, ANSI, K fast, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Delivery program
Product range
Fuse
Basic function
Expulsion fuse-link
Field of application
medium voltage
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Expulsion fuse-link, medium voltage (EC003611)
Rated current
7.5 A
Rated voltage
46000 V
Voltage type
AC
Rated frequency
45 - 62 Hz
Release characteristic
K
Type of termination
Fixed buttonhead
Standard
ANSI
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 7.5 A |
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | K |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
