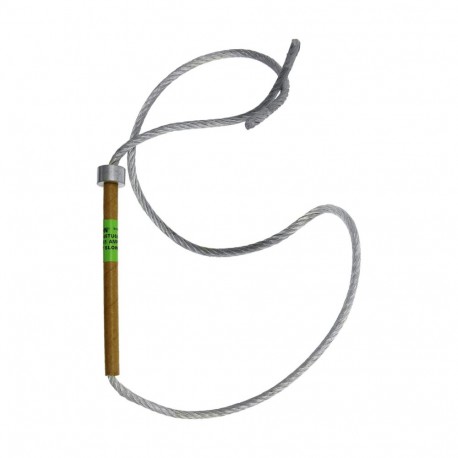

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
46KV 65A EXPULSION LINK 46TU65 EATON ELECTRIC Cartridge fuse, expulsion, MT, 65 A, AC 46 kV, 787 mm, ANSI a,..
46KV 65A EXPULSION LINK
46TU65
46TU65
EATON - MOELLER
10 Pcs.
Cartridge fuse, expulsion, MT, 65 A, AC 46 kV, 787 mm, ANSI a, T slow
46KV 65A EXPULSION LINK
Expulsion fuse-link, medium voltage, 65 A, AC 46 kV, 787 mm, ANSI, T slow, style U termination
Fuse, Expulsion fuse-link, medium voltage, 65 A, AC 46 kV, 787 mm, ANSI, T slow, universal with slip off NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
46TU65
EAN
5027590482035
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
146.1 g
Certifications
ANSI/IEEE Std C37.42
Electrical data
Amperage Rating
65 A
Voltage rating
46 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz
Product specification
Construction size
787 mm
Standard
ANSI
Type of termination
Universal
Color
Green
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 65 A |
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | T |
| Type of termination (EF012540) | Universal |
| Standard (EF009322) | ANSI |
