View larger
Images are for illustrative purposes only. Please refer to data sheet for details

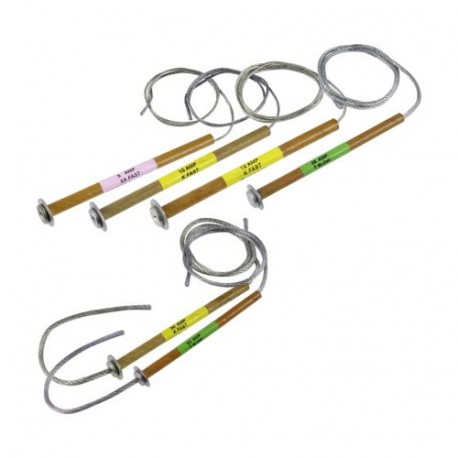

46KV 5AMP LINK 46XAB5 EATON ELECTRIC 46KV 5AMP LINK
46KV 5AMP LINK
46XAB5
46XAB5
EATON - MOELLER
25 Pcs.
46KV 5AMP LINK
Expulsion fuse-link, medium voltage, 5 A, AC 46 kV, 787 mm, Extra fast
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
46XAB5
EAN
5027590482110
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
18.96 g
Certifications
ANSI/IEEE Std C37.42
Electrical data
Amperage Rating
5 A
Voltage rating
46 kV
Voltage type
AC
Current characteristic type
Type XA - This type of expulsion fuse link has an extra rapid characteristic. It is suitable for applications where a high degree of system protection is required at the expense of discrimination.
Rated frequency - min
50 Hz
Product specification
Construction size
787 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Pink
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 5 A |
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | Other |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
