View larger
Images are for illustrative purposes only. Please refer to data sheet for details

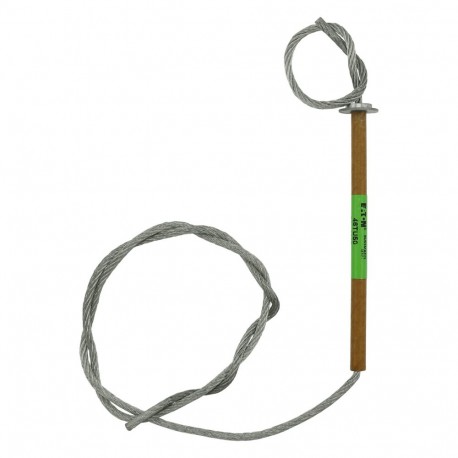

46KV 50A EXPULSION LINK 46TU50 EATON ELECTRIC Fuse-link, high speed, 350 A, AC 240 V
46KV 50A EXPULSION LINK
46TU50
46TU50
EATON - MOELLER
25 Pcs.
Fuse-link, high speed, 350 A, AC 240 V
46KV 50A EXPULSION LINK
Expulsion fuse-link, medium voltage, 50 A, AC 46 kV, 787 mm, ANSI, T slow, style U termination
Fuse, Expulsion fuse-link, medium voltage, 50 A, AC 46 kV, 787 mm, ANSI, T slow, universal with slip off NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
46TU50
EAN
5027590481991
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
69.8 g
Compliances
ANSI C37.42
Electrical data
Amperage Rating
50 A
Voltage rating
46 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz
Product specification
Construction size
787 mm
Standard
ANSI
Type of termination
Universal
Color
Green
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 50 A |
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | T |
| Type of termination (EF012540) | Universal |
| Standard (EF009322) | ANSI |
