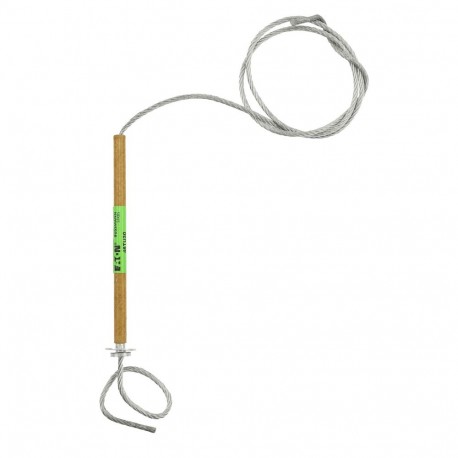

EATON - MOELLER 46KV 30A EXPULSION LINK 46KV 30A EXPULSION LINK 46TU30 EATON ELECTRIC Fuse-link, high speed, 350 A, AC 240 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

46KV 30A EXPULSION LINK 46TU30 EATON ELECTRIC Fuse-link, high speed, 350 A, AC 240 V

46KV 30A EXPULSION LINK

46TU30

46TU30

EATON - MOELLER

25 Pcs.

Fuse-link, high speed, 350 A, AC 240 V 46KV 30A EXPULSION LINK Expulsion fuse-link, medium voltage, 30 A, AC 46 kV, 787 mm, ANSI, T slow, style U termination Fuse, Expulsion fuse-link, medium voltage, 30 A, AC 46 kV, 787 mm, ANSI, T slow, universal with slip off NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 46KV 30A EXPULSION LINK 46TU30 EATON ELECTRIC Fuse-link, high speed, 350 A, AC 240 V serves as a critical protective element in medium-voltage electrical distribution systems, clearing overcurrents efficiently. These components isolate faulted lines to preserve grid stability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 30 A
  • Rated voltage (EF000228): 46 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Universal
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
46TU30
EAN
5027590481960
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
69.8 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
30 A
Voltage rating
46 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
787 mm
Standard
ANSI
Type of termination
Universal
Color
Green

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
