> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 46TD25

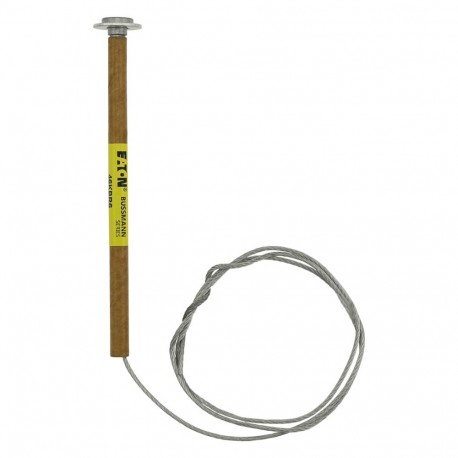

EATON - MOELLER 46KV 25A LK 46TD25 46KV 25A LK 46TD25 46TD25 EATON ELECTRIC Cartridge fuse, expulsion, MT, 25 A, AC 46 kV, 787 mm, ANSI a, T sl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

46KV 25A LK 46TD25 46TD25 EATON ELECTRIC Cartridge fuse, expulsion, MT, 25 A, AC 46 kV, 787 mm, ANSI a, T sl..

46KV 25A LK 46TD25

46TD25

EATON - MOELLER

25 Pcs.

Cartridge fuse, expulsion, MT, 25 A, AC 46 kV, 787 mm, ANSI a, T slow Expulsion fuse cartridge, MT, 25 A, AC 46 kV, 787 mm, ANSI, T slow 46TD25 - Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, ANSI, T slow, style D termination Fuse, Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, ANSI, T slow, Double tailed link without NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, ANSI, T slow, style D termination
Fuse, Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, ANSI, T slow, Double tailed link without NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Delivery program

Product range
Fuse
Basic function
Expulsion fuse-link
Field of application
medium voltage
Rated current [I]
25 A
Rated voltage
AC 46 kV
Size
787 mm
Description
Double tailed link without NEMA button head
Breaking Capacity
8 kA
usable for size/applications
protection of transformer primary side, feeder, capacitor bank
Release characteristic [class]
T slow
Standard/Approval
ANSI
Standards/Regulations
ANSI C37-42

ETIM for 46TD25 Circuit breakers and fuses (EC003611)
Feature Name Feature Value
Rated current (EF000227) 25 A
Rated voltage (EF000228) 46 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Release characteristic (EF000889) T
Type of termination (EF012540) Double tail
Standard (EF009322) ANSI

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
