View larger
Images are for illustrative purposes only. Please refer to data sheet for details

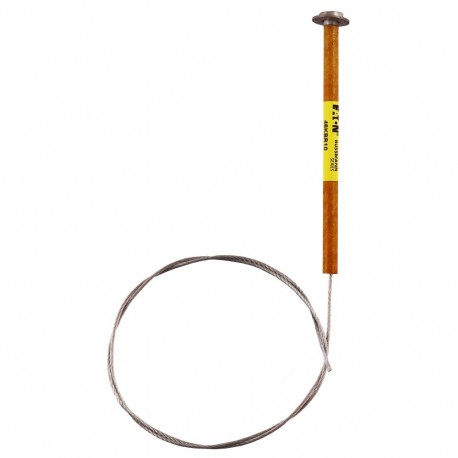

46KV 25 AMP LINK 46XAB25 EATON ELECTRIC Fuse-link, high speed, 350 A, AC 240 V
46KV 25 AMP LINK
46XAB25
EATON - MOELLER
25 Pcs.
Fuse-link, high speed, 350 A, AC 240 V
Expulsion fuse cartridge, MT, 25 A, AC 46 kV, 787 mm, Extra fast
46XAB25 - Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, Extra fast
Fuse, Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, very fast acting, fixed NEMA button head link, protection of primary side transformers, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, Extra fast
Fuse, Expulsion fuse-link, medium voltage, 25 A, AC 46 kV, 787 mm, very fast acting, fixed NEMA button head link, protection of primary side transformers, Breaking Capacity 8 kA
Delivery program
Product range
Fuse
Basic function
Expulsion fuse-link
Field of application
medium voltage
Rated current [I]
25 A
Rated voltage
AC 46 kV
Size
787 mm
Description
fixed NEMA button head link
Breaking Capacity
8 kA
usable for size/applications
protection of primary side transformers
Release characteristic [class]
very fast acting
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 25 A |
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | Other |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
