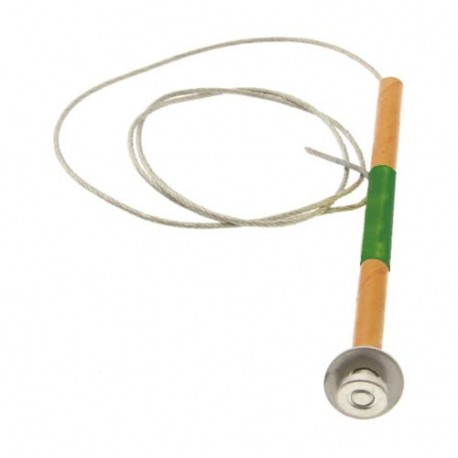

EATON - MOELLER 46KV 1A LK 46KV 1A LK 46TU1 EATON ELECTRIC Cartridge fuse, expulsion, MT, 1 A, AC 46 kV, 787 mm, ANSI a, T slow View larger
Images are for illustrative purposes only. Please refer to data sheet for details

46KV 1A LK 46TU1 EATON ELECTRIC Cartridge fuse, expulsion, MT, 1 A, AC 46 kV, 787 mm, ANSI a, T slow

46KV 1A LK

46TU1

46TU1

EATON - MOELLER

25 Pcs.

Cartridge fuse, expulsion, MT, 1 A, AC 46 kV, 787 mm, ANSI a, T slow 46KV 1A LK Expulsion fuse-link, medium voltage, 1 A, AC 46 kV, 787 mm, ANSI, T slow, style U termination Fuse, Expulsion fuse-link, medium voltage, 1 A, AC 46 kV, 787 mm, ANSI, T slow, universal with slip off NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller cartridge fuse, expulsion, MT provides targeted overcurrent protection for medium-voltage utility lines and distribution transformers. Utility personnel deploy these components in cutout assemblies to ensure reliable fault isolation across overhead networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 1 A
  • Rated voltage (EF000228): 46 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Universal
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
46TU1
EAN
5027590481885
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
22.04 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
1 A
Voltage rating
46 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
787 mm
Standard
ANSI
Type of termination
Universal
Color
Green
