View larger
Images are for illustrative purposes only. Please refer to data sheet for details

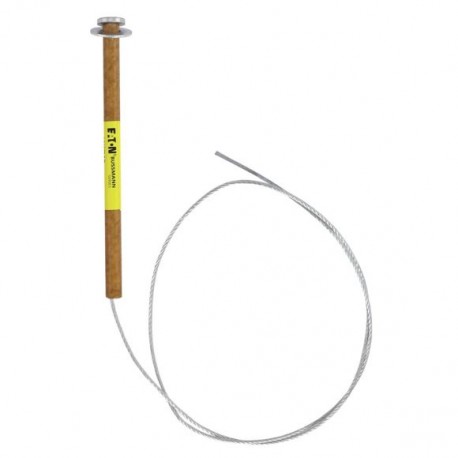

46KV 10A EXPULSION LINK 46KB10 EATON ELECTRIC Cartridge fuse, expulsion, MT, 10 A, AC 46 kV, 787 mm, ANSI a,..
46KV 10A EXPULSION LINK
46KB10
46KB10
EATON - MOELLER
25 Pcs.
Cartridge fuse, expulsion, MT, 10 A, AC 46 kV, 787 mm, ANSI a, K fast
46KV 10A EXPULSION LINK
46KB10 - Expulsion fuse-link, medium voltage, 10 A, AC 46 kV, 787 mm, ANSI, K fast
Fuse, Expulsion fuse-link, medium voltage, 10 A, AC 46 kV, 787 mm, ANSI, K fast, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Expulsion fuse-link, medium voltage, 10 A, AC 46 kV, 787 mm, ANSI, K fast
Fuse, Expulsion fuse-link, medium voltage, 10 A, AC 46 kV, 787 mm, ANSI, K fast, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
General specifications
Product name
Eaton Bussmann series medium voltage expulsion fuse
Part no.
46KB10
EAN
5027590480833
Product Length/Depth
225 millimetre
Product height
76 millimetre
Product width
106 millimetre
Product weight
24.88 gram
Compliances
ANSI C37.42
Certifications
Contact Manufacturer
Product Tradename
None
Product Type
Medium voltage expulsion fuse
Product Sub Type
None
Electrical data
Amperage Rating
10 A
Voltage rating
46 kV
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Product specifications
Application
Primary side transformer protection, feeder protection, capacitor bank protection
Standard
ANSI
Type of termination
Fixed buttonhead
Technical data ETIM 8.0
Circuit breakers and fuses (EG000020) / Expulsion fuse-link, medium voltage (EC003611)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Safety fuse systems (unspecified) ([email protected] [BAB265011])
Rated current
10 A
Rated voltage
46 kV
Voltage type
AC
Rated frequency
50 - 60 Hz
Release characteristic
K
Type of termination
Fixed buttonhead
Standard
ANSI
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 10 A |
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | K |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
