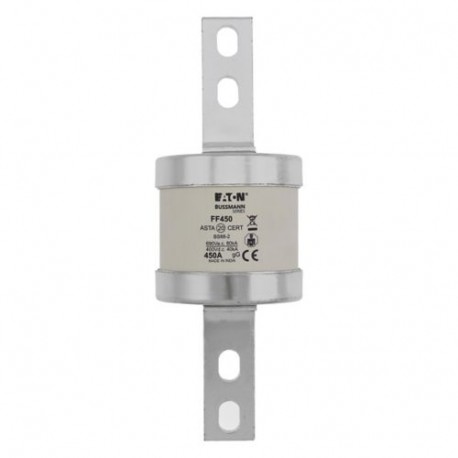

EATON - MOELLER 450AMP 690V AC / 400V DC 450AMP 690V AC / 400V DC FF450 EATON ELECTRIC Fuse-link, LV, 450 A, AC 690 V, BS88/C2, 74 x 210 mm, gL/gG, BS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

450AMP 690V AC / 400V DC FF450 EATON ELECTRIC Fuse-link, LV, 450 A, AC 690 V, BS88/C2, 74 x 210 mm, gL/gG, BS

450AMP 690V AC / 400V DC

FF450

FF450

EATON - MOELLER

1 Pcs.

Fuse-link, LV, 450 A, AC 690 V, BS88/C2, 74 x 210 mm, gL/gG, BS 450AMP 690V AC / 400V DC

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 450AMP 690V AC / 400V DC fuse-link provides reliable low-voltage protection for heavy-duty electrical networks. British Standard industrial fuses are widely deployed in switchboards, motor control centers, and electrical distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 450AMP 690V AC / 400V DC
  • Catalogue code: FF450
  • Catalogue title: 450AMP 690V AC / 400V DC FF450 EATON ELECTRIC Fuse-link, LV, 450 A, AC 690 V, BS88/C2, 74 x 210 mm, gL/gG, BS
  • Product description: General specifications Product Name Eaton Bussmann series low voltage british standard fuse Catalog Number FF450 EAN 5027590019873 UPC 051712844895 Product Length/Depth 209 mm Product Height 74 mm Product Width 74 mm Pro
  • Manufacturer summary: Fuse-link, LV, 450 A, AC 690 V, BS88/C2, 74 x 210 mm, gL/gG, BS 450AMP 690V AC / 400V DC

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
FF450
EAN
5027590019873
UPC
051712844895
Product Length/Depth
209 mm
Product Height
74 mm
Product Width
74 mm
Product Weight
1034 g
Compliances
RoHS Compliant

Electrical data

Amperage Rating
450 A
Voltage rating
690 V
Voltage type
AC/DC
Breaking capacity
80 kA
Class
Class gG/gL

Product specifications

Fuse type
FF
Fitted with:
Centre bolted tags
Construction
BS88/C2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
