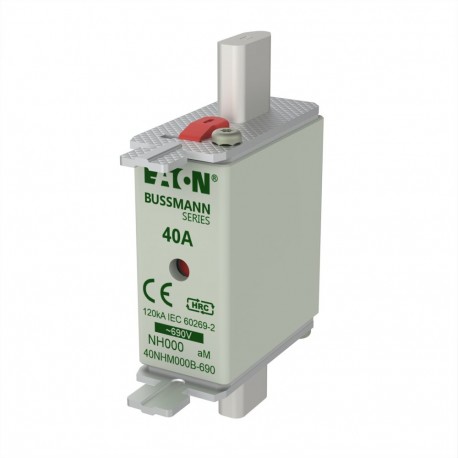

EATON - MOELLER NH FUSE 40A 690V aM SIZE 000 NH FUSE 40A 690V aM SIZE 000 40NHM000B-690 EATON ELECTRIC Fuse-link, high speed, 10 A, AC 690 V, DIN 000, gR.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 40A 690V aM SIZE 000 40NHM000B-690 EATON ELECTRIC Fuse-link, high speed, 10 A, AC 690 V, DIN 000, gR..

NH FUSE 40A 690V aM SIZE 000

40NHM000B690

40NHM000B-690

EATON - MOELLER

3 Pcs.

Fuse-link, high speed, 10 A, AC 690 V, DIN 000, gR, DIN, IEC, dual indicator, live gripping lugs NH FUSE 40A 690V aM SIZE 000 Eaton Fuse-link, LV, 40 A, AC 690 V, NH000, aM, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 40 A, AC 690 V, NH000, aM, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
40NHM000B-690
Model Code
NH FUSE 40A 690V aM SIZE 000
EAN
5027590480475
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
131 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Type
Fuse
Application
industrial
Amperage Rating
40 A
Fitted with:
Metal gripping lugs
Fuse size
NH000
Current type
AC
Breaking capacity
120 kA
Rated switching capacity
120 kA
Rated voltage AC
690 V
Class
Class aM
Fuse type
Square body with knife blade contact
Utilization category
aM (switchgear protection)
Interrupt rating
120 kAIC
Fuse indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
Watt losses
2.3 W
Connection
Blade end
Construction
NH000
Construction size
NH000
Fuse shape
Knife blade contacts
Square body
Voltage type
AC
Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
Material
Ceramic body
Quantity
3
Voltage rating
690 V
Rated switching capacity AC
120 kA

ETIM for 40NHM000B-690 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH000
Voltage type (EF000187) AC
Rated current (EF000227) 40 A
Rated voltage AC (EF007682) 690 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) aM (switchgear protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 2.3 W
