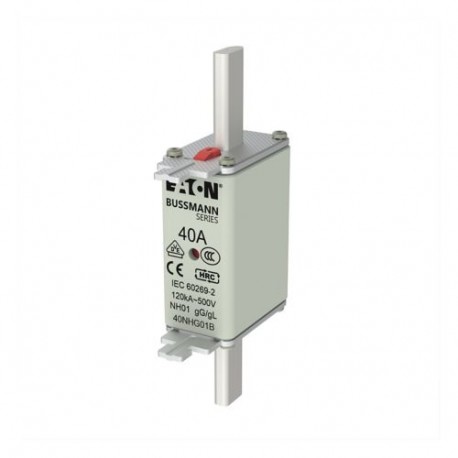

EATON - MOELLER NH FUSE 40A 500V GG/GL SIZE 01 NH FUSE 40A 500V GG/GL SIZE 01 40NHG01B EATON ELECTRIC Fuse-link, LV, 40 A, AC 500 V, NH01, gL/gG, IEC, dual.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 40A 500V GG/GL SIZE 01 40NHG01B EATON ELECTRIC Fuse-link, LV, 40 A, AC 500 V, NH01, gL/gG, IEC, dual..

NH FUSE 40A 500V GG/GL SIZE 01

40NHG01B

40NHG01B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 40 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 40A 500V GG/GL SIZE 01 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 40A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
40NHG01B
EAN
5027590480345
UPC
051712625951
Product Length/Depth
135 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
295 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
40 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH0
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors

ETIM for 40NHG01B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH01
Voltage type (EF000187) AC
Rated current (EF000227) 40 A
Rated voltage AC (EF007682) 500 V
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
