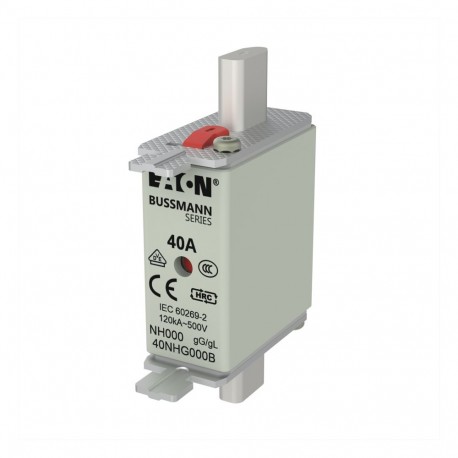

EATON - MOELLER NH FUSE 40A 500V SIZE 000 GG MGL NH FUSE 40A 500V SIZE 000 GG MGL 40NHG000B EATON ELECTRIC Fuse-link, LV, 40 A, AC 500 V, NH000, gL/gG, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 40A 500V SIZE 000 GG MGL 40NHG000B EATON ELECTRIC Fuse-link, LV, 40 A, AC 500 V, NH000, gL/gG, IEC, ..

NH FUSE 40A 500V SIZE 000 GG MGL

40NHG000B

40NHG000B

EATON - MOELLER

3 Pcs.

NH FUSE 40A 500V SIZE 000 GG MGL Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 40A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, square-body with knife blade contact

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A low-voltage fuse-link from Eaton Moeller protects electrical circuits against sustained overloads and short circuits by breaking the flow of current during a fault condition. Such links are widely employed across industrial facilities to maintain operational safety in distribution boards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH000
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 40 A
  • Rated voltage AC (EF007682): 500 V
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
40NHG000B
Model Code
NH FUSE 40A 500V SIZE 000 GG MGL
EAN
5027590480253
UPC
051712625821
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
119.333 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
40 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
