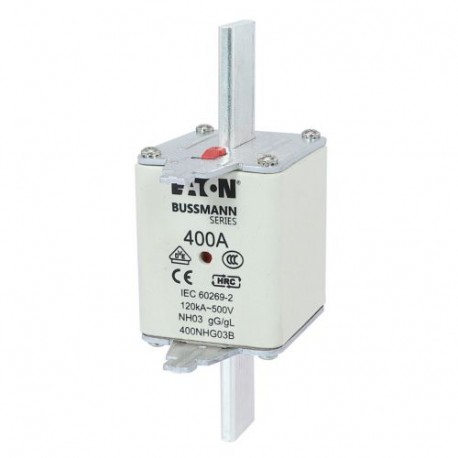

EATON - MOELLER NH FUSE 400A 500V GG/GL SIZE 03 NH FUSE 400A 500V GG/GL SIZE 03 400NHG03B EATON ELECTRIC Fuse-link, LV, 400 A, AC 500 V, NH03, gL/gG, IEC, d.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 400A 500V GG/GL SIZE 03 400NHG03B EATON ELECTRIC Fuse-link, LV, 400 A, AC 500 V, NH03, gL/gG, IEC, d..

NH FUSE 400A 500V GG/GL SIZE 03

400NHG03B

400NHG03B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 400 A, AC 500 V, NH03, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 400A 500V GG/GL SIZE 03 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 400A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty electrical distribution, the Eaton Moeller NH FUSE 400A 500V GG/GL SIZE 03 provides high-capacity current interruption for industrial facilities. Such cartridge fuses are implemented in major switchgear panels to safeguard extensive cable networks and high-load machinery from fault currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH03
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 400 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): None kA
  • Rated voltage DC (EF012281): None V
  • Rated switching capacity DC (EF017699): None kA
  • Utilization category according to IEC 60269 (EF002572): gG
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): false
  • Power loss at rated current (EF012389): None W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
400NHG03B
EAN
5027590479707
UPC
051712626231
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
616.667 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
400 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH03
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch BVL50
