View larger
Images are for illustrative purposes only. Please refer to data sheet for details

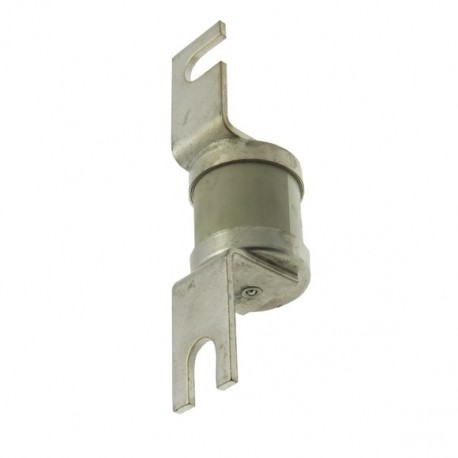

400A 600V THYRISTOR FUSE (1) 400CMMT EATON ELECTRIC Fuse-link, high speed, 400 A, AC 690 V, BS88, 83 x 136 m..
400A 600V THYRISTOR FUSE (1)
400CMMT
EATON - MOELLER
1 Pcs.
Fuse-link, high speed, 400 A, AC 690 V, BS88, 83 x 136 mm, aR, BS
400A 600V THYRISTOR FUSE (1)
400A 600V THYRISTOR FUSE (1) - Fuse-link, high speed, 400 A, AC 690 V, 200 kA, BS88, 83 x 136 mm, aR, BS, 110 mm fixing centres
Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse-link, high speed, 400 A, AC 690 V, 200 kA, BS88, 83 x 136 mm, aR, BS, 110 mm fixing centres
Fuse, Fuse-link, high speed, 400 A, AC 690 V, BS88, 83 x 136 mm, aR, BS, centre-bolted tags (dual barrel), 110 mm fixing centres, thyristor protection, BS88-4, IEC 60269-4, Breaking Capacity 200 kA
Delivery program
Product range
Fuse
Basic function
Fuse-link
Field of application
high speed
Rated current [I]
400 A
Rated voltage
AC 690 V
Construction size
BS88
Size
83 x 136 mm
Utilization category
aR
Description
110 mm fixing centres
Breaking Capacity
200 kA
usable for size/applications
thyristor protection
Standard/Approval
BS
Shape
centre-bolted tags (dual barrel)
Standards/Regulations
BS88-4
IEC 60269-4
IEC 60269-4
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
Other
Rated current
400 A
Rated voltage
690 V
Voltage type
AC
Rated switching capacity
200 kA
Utilization category
aR (accompanied semiconductor protection)
Type of fuse status indicator
None
Insulated metal gripping lugs (IMGL)
No
