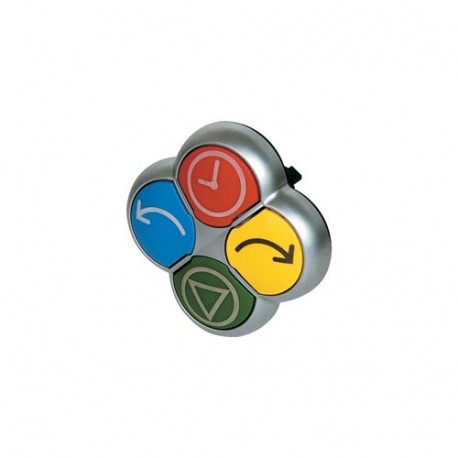

EATON - MOELLER M22-D4-*-* M22-D4-*-* 279413 Y7-279413 EATON ELECTRIC 4-way pushbutton, momentary, facility for inscription, silver View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D4-*-* 279413 Y7-279413 EATON ELECTRIC 4-way pushbutton, momentary, facility for inscription, silver

M22-D4-*-*

279413

Y7-279413

EATON - MOELLER

1 Pcs.

4-way pushbutton, momentary, facility for inscription, silver M22-D4-*-* Eaton Moeller® series M22 Position pushbutton, RMQ-Titan, Actuators non-flush, momentary, 4-fold, opposing pushbuttons not mechanically interlocked, selectable, individual facility for inscription, Bezel: titanium Position pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators non-flush, momentary, Description: 4-fold, opposing pushbuttons not mechanically interlocked, button plate: selectable, Button plate individual facility for inscription, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 55 x 55, Ordering information: Notes on customized inscription → Data sheet, additional product information (links), Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Four-way pushbutton M22-D4-*-* by Eaton Moeller allows operators to direct multi-axis commands from a single consolidated control point. Multi-directional actuators are frequently utilized in crane operation, positioning systems, and complex machinery navigation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 4
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA), front side (EF011961): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 4-way pushbutton
Catalog Number
279413
Model Code
M22-D4-*-*
Product Length/Depth
55 mm
Product Height
32 mm
Product Width
55 mm
Product Weight
0.022 kg
Certifications
CSA-C22.2 No. 14-05
IEC/EN 60947
CE
UL 508
CSA
CSA-C22.2 No. 94-91
VDE 0660
CSA Class No.: 3211-03
CSA File No.: 012528
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
UL File No.: E29184
DNV
GL
LR
Catalog Notes
Notes on customized inscription → Data sheet, additional product information (links)
