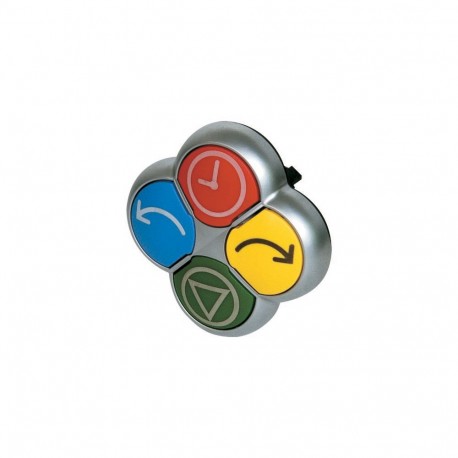

EATON - MOELLER M22-DI4-*-* M22-DI4-*-* 286340 Y7-286340 EATON ELECTRIC 4-way pushbutton, momentary, facility for inscription, interlock.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DI4-*-* 286340 Y7-286340 EATON ELECTRIC 4-way pushbutton, momentary, facility for inscription, interlock..

M22-DI4-*-*

286340

Y7-286340

EATON - MOELLER

1 Pcs.

4-way pushbutton, momentary, facility for inscription, interlocked, silver M22-DI4-*-* Eaton Moeller® series M22 Position pushbutton, RMQ-Titan, Actuators non-flush, momentary, 4-fold, opposing pushbuttons mechanically interlocked, selectable, individual facility for inscription, Bezel: titanium Position pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators non-flush, momentary, Description: 4-fold, opposing pushbuttons mechanically interlocked, button plate: selectable, Button plate individual facility for inscription, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 55 x 55, Ordering information: Notes on customized inscription → Data sheet, additional product information (links), Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 4-way pushbutton
Catalog Number
286340
Model Code
M22-DI4-*-*
Product Length/Depth
55 mm
Product Height
32 mm
Product Width
55 mm
Product Weight
0.022 kg
Certifications
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
UL 508
IEC/EN 60947-5
CSA Class No.: 3211-03
VDE 0660
UL File No.: E29184
CSA
CE
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NKCR
UL
DNV
GL
LR
Catalog Notes
Notes on customized inscription → Data sheet, additional product information (links)

Features & Functions

Bezel color
Chrome
Bezel material
Plastic
Design
Non-Flush
Classical
Features
Labelled
Fitted with:
Front ring
Functions
Opposing pushbuttons mechanically interlocked
Inscription
Individual inscription possible

General

Degree of protection
NEMA 3R
NEMA 12
IP66
NEMA 4X
NEMA 13
Degree of protection (front side)
IP66
NEMA 4X
Lifespan, mechanical
200,000 Operations
Opening diameter
22.5 mm
Operating frequency
3600 Operations/h
Product category
RMQ-Titan
Size
Front dimensions: 55 x 55 mm
Type
Pushbutton

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Communication

Connection to SmartWire-DT
With SWD-RMQ connections
Yes

Actuator

Actuating force
5 N
Actuator color
Other
Actuator function
Spring-return
Momentary

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 286340 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour button (EF000190) Other
Number of command positions (EF001372) 4
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Type of button (EF001546) Flat
Suitable for lighting (EF001142) No
With protective cover (EF005500) No
Labelled (EF001537) Yes
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Chrome
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA), front side (EF011961) 4X
