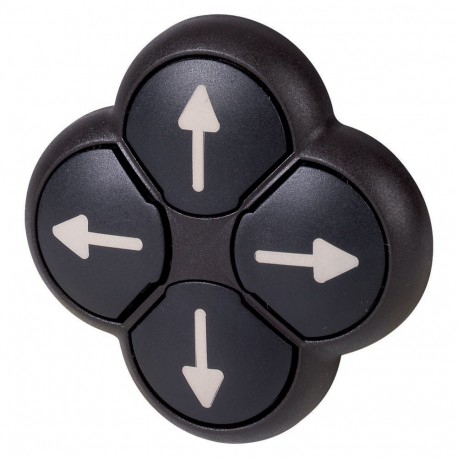

M22S-DI4-*-* 286341 Y7-286341 EATON ELECTRIC 4-way pushbutton, momentary, facility for inscription, interloc..
M22S-DI4-*-*
286341
Y7-286341
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-DI4-*-* is a 4-way pushbutton built to manage multi-directional directional inputs on industrial control panels. Operators use multi-position command devices to navigate parameters or steer motorized axes within automated production lines. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of command positions (EF001372): 4
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA), front side (EF011961): 4X
More info
▲General specifications
IEC/EN 60947
CSA-C22.2 No. 94-91
VDE 0660
UL
CE
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA File No.: 012528
CSA
DNV
GL
LR
Features & Functions
Classical
General
IP66
NEMA 12
NEMA 13
NEMA 3R
NEMA 4X
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
