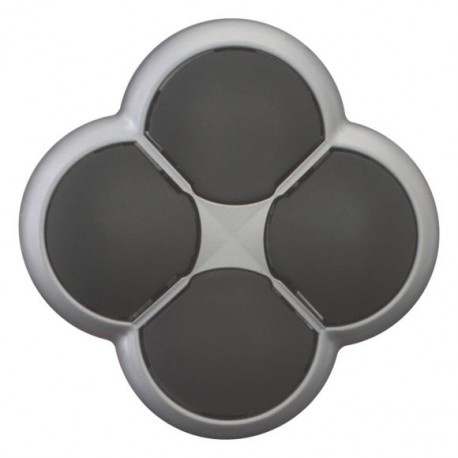

EATON - MOELLER M22-D4-S M22-D4-S 279411 Y7-279411 EATON ELECTRIC 4-way pushbutton, black, momentary, silver View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-D4-S 279411 Y7-279411 EATON ELECTRIC 4-way pushbutton, black, momentary, silver

M22-D4-S

279411

Y7-279411

EATON - MOELLER

5 Pcs.

4-way pushbutton, black, momentary, silver M22-D4-S Eaton Moeller® series M22 Position pushbutton, RMQ-Titan, Actuators non-flush, momentary, 4-fold, opposing pushbuttons not mechanically interlocked, Bezel: titanium Position pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators non-flush, momentary, Description: 4-fold, opposing pushbuttons not mechanically interlocked, Name: No inscription, actuator color black, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 55 x 55, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22-D4-S 279411 Y7-279411 EATON ELECTRIC 4-way pushbutton, black, momentary, silver manufactured by Eaton Moeller gives machine operators directional control options within a single multi-position interface. These specialized actuators are typically used in hoisting equipment, gantry cranes, and complex positioning systems to direct multi-axis movement. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Number of command positions (EF001372): 4
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP66

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 4-way pushbutton
Catalog Number
279411
Model Code
M22-D4-S
EAN
4015082794118
Product Length/Depth
55 mm
Product Height
32 mm
Product Width
55 mm
Product Weight
0.022 kg
Compliances
CE Marked
Certifications
UL 508
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
UL File No.: E29184
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA
UL
UL Category Control No.: NKCR
IEC/EN 60947-5
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC/EN 60947
VDE 0660
DNV
GL
LR
Catalog Notes
4-fold

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
