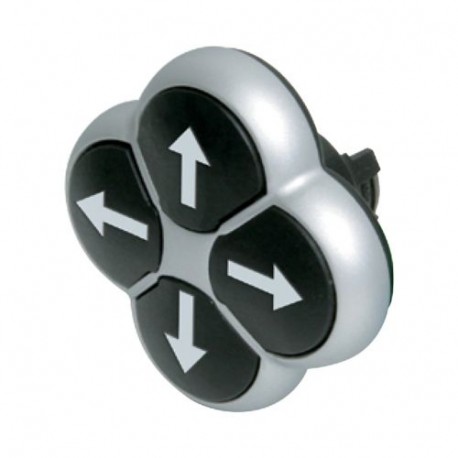

M22-D4-S-X7 286336 Y7-286336 EATON ELECTRIC 4-way pushbutton, black arrows, momentary, silver
M22-D4-S-X7
286336
Y7-286336
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 4-way pushbutton, black arrows, momentary, silver such as the Eaton Moeller M22-D4-S-X7 provides multi-directional navigational control for positioning systems, cranes, and complex industrial machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 4
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
More info
▲General specifications
EN 60947-5
IEC 60947-5
UL 508
CSA Std. C22.2 No. 94-91
VDE
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA File No.: 012528
IEC/EN 60947
UL File No.: E29184
CSA-C22.2 No. 94-91
VDE 0660
CE
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
NEMA 3R
IP66
NEMA 12
IP66
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Momentary
