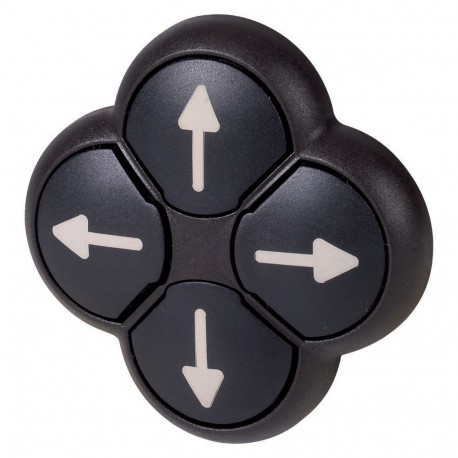

M22S-D4-S-X7 286337 Y7-286337 EATON ELECTRIC 4-way pushbutton, black arrows, momentary
M22S-D4-S-X7
286337
Y7-286337
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22S-D4-S-X7 Eaton Moeller 4-way pushbutton is a multi-directional control switch designed for complex maneuvering tasks, robotics control, and multi-axis positioning systems. Operators utilize these 4-way actuators to direct motion across four distinct operational axes from a single control point.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 4
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
More info
▲General specifications
CSA
IEC/EN 60947-5
UL File No.: E29184
VDE 0660
IEC/EN 60947
CSA-C22.2 No. 14-05
UL 508
UL Category Control No.: NKCR
CE
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 94-91
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
NEMA 12
NEMA 13
IP66
NEMA 4X
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Momentary
