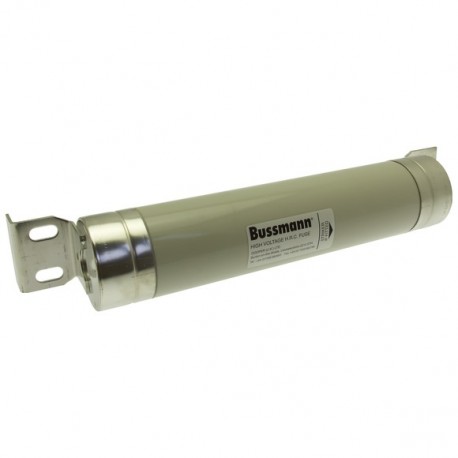

EATON - MOELLER 3.6KV 80AMP MOTOR START 3.6KV 80AMP MOTOR START 3.6WFGHO780 3-6WFGHO780 EATON ELECTRIC Auxiliary winding switch, Contacts: 8, 20 A, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 80AMP MOTOR START 3.6WFGHO780 3-6WFGHO780 EATON ELECTRIC Auxiliary winding switch, Contacts: 8, 20 A, ..

3.6KV 80AMP MOTOR START

36WFGHO780

3-6WFGHO780

EATON - MOELLER

3 Pcs.

Auxiliary winding switch, Contacts: 8, 20 A, front plate: 2-START>0 Auxiliary winding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, 4 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2-START>0 Motor cartridge fuse, MT, 80 A, AC 3.6 kV, 76 x 432 mm, back-up, BS, with striker 3.6WFGHO780 - Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 76 x 432 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 76 x 432 mm, back-up, BS, with striker, cylindrical with offset bolted tags, motor protection, BS2692-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 3.6KV 80AMP MOTOR START component provides dependable overcurrent protection for medium voltage industrial motor installations. Devices in this product family are selected by engineers to secure electrical distribution setups against sudden surge events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 80 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.05 kA
  • Length (EF001438): 442 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 76 x 432 mm, back-up, BS, with striker
Fuse, Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 76 x 432 mm, back-up, BS, with striker, cylindrical with offset bolted tags, motor protection, BS2692-1, Breaking Capacity 50 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
80 A
Rated voltage
AC 3.6 kV
Size
76 x 432 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
50 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical with offset bolted tags
Standards/Regulations
BS2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
80 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
50 kA
Utilization category
Other
Application
Motor protection
Length
432 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
