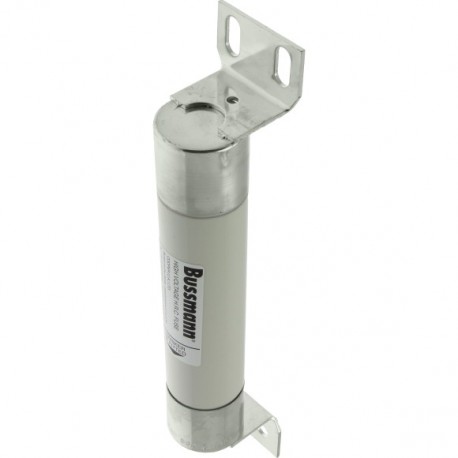

3.6WDFHO80 3-6WDFHO80 EATON ELECTRIC Motor fuse-link, medium voltage, 80 A, AC 3.6 kV, 51 x 254 mm, back-up,..
3.6WDFHO80
36WDFHO80
3-6WDFHO80
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller motor fuse-link, part number 3.6WDFHO80, is designed for medium voltage industrial electrical distribution and motor protection circuits. Medium voltage fuses interrupt high fault currents to safeguard expensive distribution assets and rotating equipment from catastrophic damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 80 A
- Rated voltage (EF000228): 3.6 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 0.05 kA
- Application (EF000041): Motor protection
- Length (EF001438): 254 mm
- Diameter (EF000551): 51 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Air
