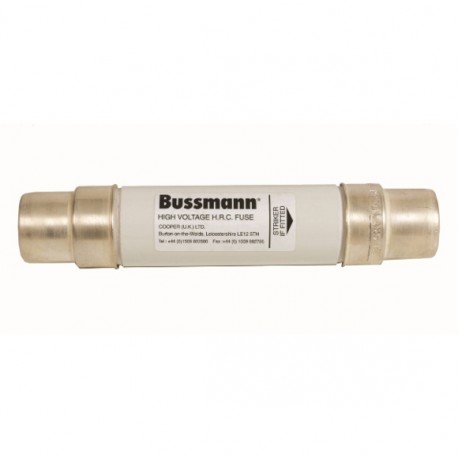

3.6KV 6.3AMP 2" DIN FUSE 3.6ADLSJ6.3 3-6ADLSJ6-3 EATON ELECTRIC Fuse-link, medium voltage, 6.3 A, AC 3.6 kV,..
3.6KV 6.3AMP 2" DIN FUSE
36ADLSJ63
3-6ADLSJ6-3
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller 3.6KV 6.3AMP 2" DIN FUSE is a fuse-link, medium voltage engineered for DIN-compliant switchgear and transformer protection. These safety links isolate faulty circuits to maintain overall power system stability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 6.3 A
- Rated voltage (EF000228): 3.6 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 360 mm
- Diameter (EF000551): 51 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): DIN
- Installation technique (EF001474): Air
More info
▲Delivery program
indoor use
VDE 0670-4
IEC 60282-1
