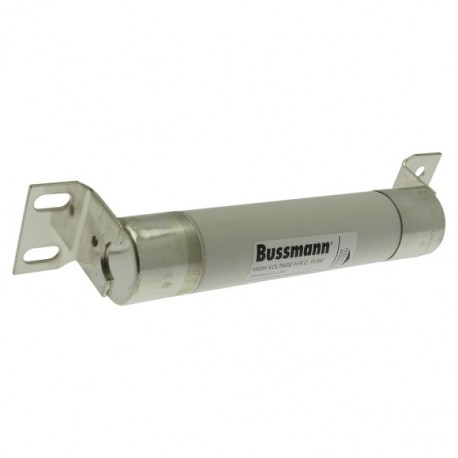

EATON - MOELLER 3.6KV 63A M/S 1215 3-6WDOHA63 3.6KV 63A M/S 1215 3-6WDOHA63 3-6WDOHA63 EATON ELECTRIC Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 63A M/S 1215 3-6WDOHA63 3-6WDOHA63 EATON ELECTRIC Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51..

3.6KV 63A M/S 1215 3-6WDOHA63

36WDOHA63

EATON - MOELLER

3 Pcs.

Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker Motor fuse cartridge, MT, 63 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 3.6KV 63A M/S 1215 3-6WDOHA63 serves as a specialized motor circuit fuse-link engineered to handle medium voltage starting loads and fault currents. Such devices integrate trip indicators to signal operational states during fault interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 63 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.05 kA
  • Length (EF001438): 254 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker
Fuse, Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 192 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, Breaking Capacity 50 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
63 A
Rated voltage
AC 3.6 kV
Size
51 x 192 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
50 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
63 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
50 kA
Utilization category
Other
Application
Motor protection
Length
254 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
