EATON - MOELLER 3.6WDFHO63 3.6WDFHO63 3-6WDFHO63 EATON ELECTRIC Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 254 mm, back-up,.. View larger

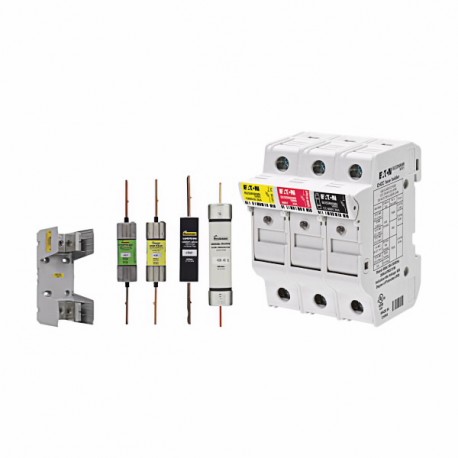

Images are for illustrative purposes only. Please refer to data sheet for details

3.6WDFHO63 3-6WDFHO63 EATON ELECTRIC Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 254 mm, back-up,..

3.6WDFHO63

36WDFHO63

3-6WDFHO63

EATON - MOELLER

3 Pcs.

3.6KV 63AMP 2" 'O' MOTORSTART FUSE 3.6WDFHO63 - Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 254 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 254 mm, back-up, BS, with striker, cylindrical, offset bolted tags, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for industrial motor circuits, this Eaton Moeller 3.6WDFHO63 motor fuse-link delivers back-up protection against short circuits in medium-voltage networks. Motor protection fuses help prevent expensive downtime in heavy manufacturing facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 63 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.05 kA
  • Application (EF000041): Motor protection
  • Length (EF001438): 254 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 254 mm, back-up, BS, with striker
Fuse, Motor fuse-link, medium voltage, 63 A, AC 3.6 kV, 51 x 254 mm, back-up, BS, with striker, cylindrical, offset bolted tags, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

General specifications
Product name
Eaton Bussmann series medium voltage motor fuse
Part no.
3.6WDFHO63
EAN
5027590474252
Product Length/Depth
254 millimetre
Product height
51 millimetre
Product width
51 millimetre
Product weight
1460 gram
Compliances
BS 2692-1
Product Tradename
None
Product Type
Medium voltage motor fuse
Product Sub Type
None
Electrical data
Amperage Rating
63 A
Voltage rating
3.6 kV
Breaking capacity
50 A
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
53 ohms
Product specifications
Application
Motor protection
Fuse indicator
Non Indicating
Fuse size
51 x 254 mm
Standard
British Standard
Compatible fuse clip
Used with
A3354710 Nickel-plated copper fuse clip

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Safety fuse systems (unspecified) ([email protected] [BAB265011])
Rated current
63 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
0.05 kA
Utilization category
Other
Application
Motor protection
Length
254 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
