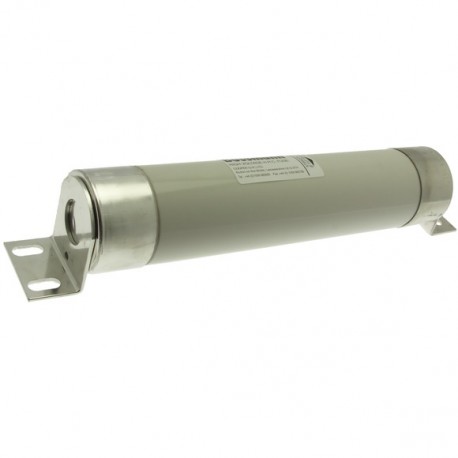

EATON - MOELLER 3.6KV 450A M/S FUSE 3.6KV 450A M/S FUSE 3.6WKGHO7450 3-6WKGHO7450 EATON ELECTRIC Motor fuse-link, medium voltage, 450 A, AC 3.6 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 450A M/S FUSE 3.6WKGHO7450 3-6WKGHO7450 EATON ELECTRIC Motor fuse-link, medium voltage, 450 A, AC 3.6 ..

3.6KV 450A M/S FUSE

36WKGHO7450

3-6WKGHO7450

EATON - MOELLER

3 Pcs.

Motor fuse-link, medium voltage, 450 A, AC 3.6 kV, 76 x 359 mm, back-up, BS, with striker, style O7 tags Motor fuse cartridge, MT, 450 A, AC 3.6 kV, 76 x 359 mm, back-up, BS, with striker Fuse, Motor fuse-link, medium voltage, 450 A, AC 3.6 kV, 76 x 359 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing heavy-duty circuit protection, this Eaton Moeller 3.6KV 450A M/S FUSE functions as a medium voltage motor start fuse-link. Industrial facilities rely on these high-amperage components to handle the unique current characteristics of large electric motors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 450 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.05 kA
  • Length (EF001438): 359 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 450 A, AC 3.6 kV, 76 x 359 mm, back-up, BS, with striker, style O7 tags
Fuse, Motor fuse-link, medium voltage, 450 A, AC 3.6 kV, 76 x 359 mm, back-up, BS, with striker, cylindrical, motor protection, BS2692-1, IEC 60282-1, Breaking Capacity 50 kA

Delivery program

Product range
Fuse
Basic function
Motor fuse-link
Field of application
medium voltage
Rated current [I]
450 A
Rated voltage
AC 3.6 kV
Size
76 x 359 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
50 kA
usable for size/applications
motor protection
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
450 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
50 kA
Utilization category
Other
Application
Motor protection
Length
359 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
