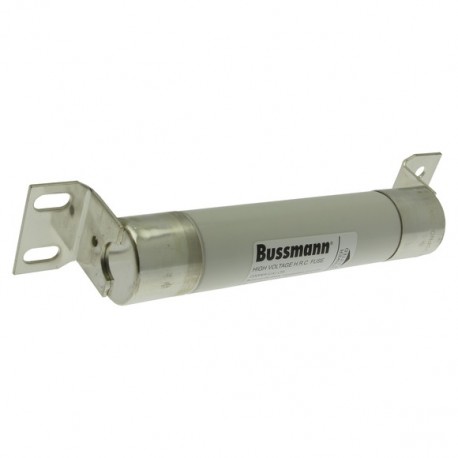

EATON - MOELLER 3.6KV 3.15AMP 1" '22' VT FUSE 3.6KV 3.15AMP 1" '22' VT FUSE 3.6ABCN223.15 3-6ABCN223-15 EATON ELECTRIC Fuse, Air fuse-link, medium voltage.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 3.15AMP 1" '22' VT FUSE 3.6ABCN223.15 3-6ABCN223-15 EATON ELECTRIC Fuse, Air fuse-link, medium voltage..

3.6KV 3.15AMP 1" '22' VT FUSE

36ABCN22315

3-6ABCN223-15

EATON - MOELLER

1 Pcs.

Fuse, Air fuse-link, medium voltage, 25 A, AC 12 kV, 359 x 50.8 mm, back-up, BS, with striker, style 40 tags 3.6KV 3.15AMP 1" '22' VT FUSE 3.6KV 3.15AMP 1" '22' VT FUSE - VT fuse-link, medium voltage, 3.15 A, AC 3.6 kV, 45 kA, BS88, 25.4 x 195 mm, back-up, BS, IEC Fuse, VT fuse-link, medium voltage, 3.15 A, AC 3.6 kV, BS88, 25.4 x 195 mm, back-up, BS, IEC, cylindrical with stud one end, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing precise auxiliary circuit isolation, the Eaton Moeller 3.6KV 3.15AMP 1" '22' VT FUSE 3.6ABCN223.15 protects potential transformers and low-amperage medium voltage applications from electrical faults. Voltage transformer fuses safeguard sensitive measurement equipment against damaging overcurrent surges.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 3.15 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Auxiliary transformer protection
  • Length (EF001438): 195 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): IEC
  • Installation technique (EF001474): Air

More info

▲
VT fuse-link, medium voltage, 3.15 A, AC 3.6 kV, 45 kA, BS88, 25.4 x 195 mm, back-up, BS, IEC
Fuse, VT fuse-link, medium voltage, 3.15 A, AC 3.6 kV, BS88, 25.4 x 195 mm, back-up, BS, IEC, cylindrical with stud one end, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA

Delivery program

Product range
Fuse
Basic function
VT fuse-link
Field of application
medium voltage
Rated current [I]
3.15 A
Rated voltage
AC 3.6 kV
Construction size
BS88
Size
25.4 x 195 mm
Utilization category
back-up
Breaking Capacity
45 kA
usable for size/applications
voltage and auxiliary transformers
Standard/Approval
BS
IEC
Shape
cylindrical with stud one end
Standards/Regulations
BS2692-1
IEC 60282-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
3.15 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
45 kA
Utilization category
Other
Application
Auxiliary transformer protection
Length
254 mm
Diameter
25.4 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
IEC
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
