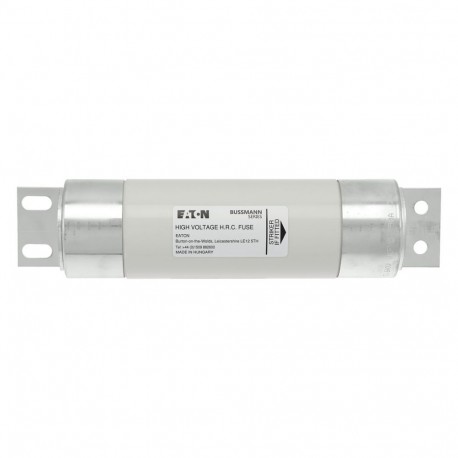

3.6WKGHO315 3-6WKGHO315 EATON ELECTRIC Motor fuse-link, medium voltage, 315 A, AC 3.6 kV, 76 x 359 mm, back-..
3.6WKGHO315
36WKGHO315
3-6WKGHO315
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Specialized motor protection is delivered by the Eaton Moeller 3.6WKGHO315 motor fuse-link in industrial power applications. These components are implemented to shield heavy-duty motor circuits from thermal overloads and extreme fault currents during operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 315 A
- Rated voltage (EF000228): 3.6 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 0.05 kA
- Application (EF000041): Motor protection
- Length (EF001438): 359 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Air
