EATON - MOELLER 3.6WKLSJ315 3.6WKLSJ315 3-6WKLSJ315 EATON ELECTRIC Motor fuse-link, medium voltage, 315 A, AC 3.6 kV, DIN 43625 3", 76 x.. View larger

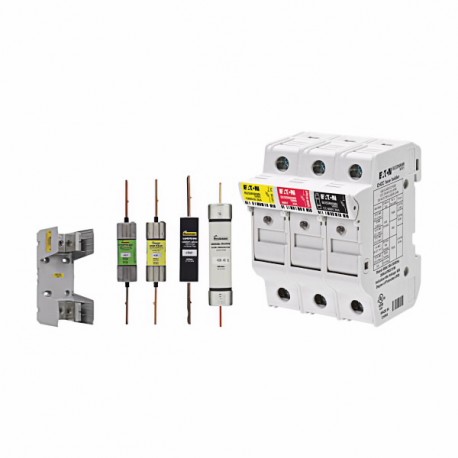

Images are for illustrative purposes only. Please refer to data sheet for details

3.6WKLSJ315 3-6WKLSJ315 EATON ELECTRIC Motor fuse-link, medium voltage, 315 A, AC 3.6 kV, DIN 43625 3", 76 x..

3.6WKLSJ315

36WKLSJ315

3-6WKLSJ315

EATON - MOELLER

3 Pcs.

3.6KV 315Amp 3" 'J' Motorstart Fuse 3.6WKLSJ315 - Motor fuse-link, medium voltage, 315 A, AC 3.6 kV, DIN 43625 3", 76 x 292 mm, back-up, DIN, with striker Fuse, Motor fuse-link, medium voltage, 315 A, AC 3.6 kV, DIN 43625 3z, 76 x 292 mm, back-up, DIN, with striker, cylindrical, motor protection, DIN 43625, VDE 0670-4, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller motor fuse-link, part number 3.6WKLSJ315, functions as a protective device within medium voltage electrical networks. This component interrupts abnormal current surges to prevent equipment damage in heavy-duty motor circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 315 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.05 kA
  • Application (EF000041): Motor protection
  • Length (EF001438): 292 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 315 A, AC 3.6 kV, DIN 43625 3", 76 x 292 mm, back-up, DIN, with striker
Fuse, Motor fuse-link, medium voltage, 315 A, AC 3.6 kV, DIN 43625 3", 76 x 292 mm, back-up, DIN, with striker, cylindrical, motor protection, DIN 43625, VDE 0670-4, IEC 60282-1, Breaking Capacity 50 kA

General specifications
Product name
Eaton Bussmann series medium voltage motor fuse
Part no.
3.6WKLSJ315
EAN
5027590475846
Product Length/Depth
292 millimetre
Product height
76 millimetre
Product width
76 millimetre
Product weight
3160 gram
Compliances
DIN 43625
VDE 0670-4
Certifications
IEC60282-1
Product Tradename
None
Product Type
Medium voltage motor fuse
Product Sub Type
None
Electrical data
Amperage Rating
315 A
Voltage rating
3.6 kV
Breaking capacity
50 A
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
0.51 ohms
Product specifications
Application
Motor protection
Fuse indicator
Non Indicating
Fuse size
76 x 292 mm
Standard
DIN
Compatible fuse clip
Used with
A3354730 Nickel-plated copper fuse clip

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Safety fuse systems (unspecified) ([email protected] [BAB265011])
Rated current
315 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
0.05 kA
Utilization category
Other
Application
Motor protection
Length
292 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
DIN
Release characteristic
Other
Installation technique
Air
