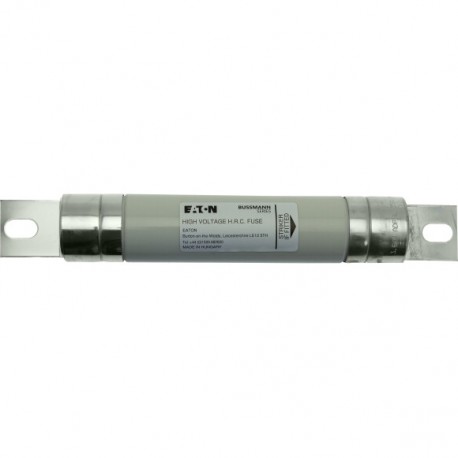

EATON - MOELLER 36KV 3.15A AIR 1162 36KV 3.15A AIR 1162 36ADINA3.15 36ADINA3-15 EATON ELECTRIC Air fuse-link, medium voltage, 3.15 A, AC 36 kV, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

36KV 3.15A AIR 1162 36ADINA3.15 36ADINA3-15 EATON ELECTRIC Air fuse-link, medium voltage, 3.15 A, AC 36 kV, ..

36KV 3.15A AIR 1162

36ADINA315

36ADINA3-15

EATON - MOELLER

3 Pcs.

Air fuse-link, medium voltage, 3.15 A, AC 36 kV, 25.4 x 359mm, back-up, BS, no tags 36KV 3.15AMP 2" AIR FUSE 36ADINA3.15 - Air fuse-link, medium voltage, 3.15 A, AC 36 kV, 50.8 x 565mm, back-up, BS Fuse, Air fuse-link, medium voltage, 3.15 A, AC 36 kV, 50.8 x 565mm, back-up, BS, cylindrical, BS 2692-1, Breaking Capacity 16 kA, Optional accessories, Supplied with

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 36KV 3.15A AIR 1162 (36ADINA3.15) medium voltage air fuse-link is deployed to secure transformer primary circuits in high-voltage installations. These components interrupt fault currents to prevent equipment degradation across electrical distribution grids.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 3.15 A
  • Rated voltage (EF000228): 36 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 16 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 567 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Air fuse-link, medium voltage, 3.15 A, AC 36 kV, 50.8 x 565mm, back-up, BS
Fuse, Air fuse-link, medium voltage, 3.15 A, AC 36 kV, 50.8 x 565mm, back-up, BS, cylindrical, BS 2692-1, Breaking Capacity 16 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
3.15 A
Rated voltage
AC 36 kV
Size
50.8 x 565mm
Utilization category
back-up
Breaking Capacity
16 kA
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS 2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
3.15 A
Rated voltage
36 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
16 kA
Utilization category
Other
Application
Primary side transformer protection
Length
565 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Air
