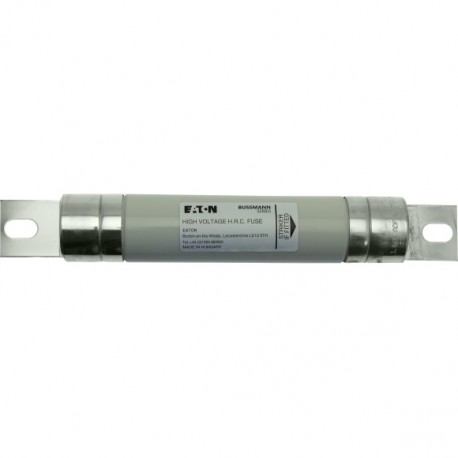

EATON - MOELLER 36KV 25AMP 2" AIR FUSE 36KV 25AMP 2" AIR FUSE 36ADIH3625 EATON ELECTRIC Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

36KV 25AMP 2" AIR FUSE 36ADIH3625 EATON ELECTRIC Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm..

36KV 25AMP 2" AIR FUSE

36ADIH3625

EATON - MOELLER

1 Pcs.

Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, style 36 tags 36KV 25AMP 2" AIR FUSE 36KV 25AMP 2" AIR FUSE - Air fuse-link, 25 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, with striker

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, style 36 tags units such as the Eaton Moeller 36KV 25AMP 2" AIR FUSE protect high-voltage electrical distribution networks from overloads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 36KV 25AMP 2" AIR FUSE
  • Catalogue code: 36ADIH3625
  • Catalogue title: 36KV 25AMP 2" AIR FUSE 36ADIH3625 EATON ELECTRIC Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm..
  • Product description: Air fuse-link, 25 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, with striker Fuse, Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, cylindrical, protection of primary side tran
  • Manufacturer summary: Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, style 36 tags 36KV 25AMP 2" AIR FUSE 36KV 25AMP 2" AIR FUSE - Air fuse-link, 25 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, w

More info

▲
Air fuse-link, 25 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 25 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS 2692-1, Breaking Capacity 16 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Rated current [I]
25 A
Rated voltage
AC 36 kV
Construction size
2"
Size
50.8 x 565mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
16 kA
usable for size/applications
protection of primary side transformers
used in fuse switch combination units, fuse bases and fuse switches
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS 2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
25 A
Rated voltage
36 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
16 kA
Utilization category
Other
Application
Primary side transformer protection
Length
565 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
