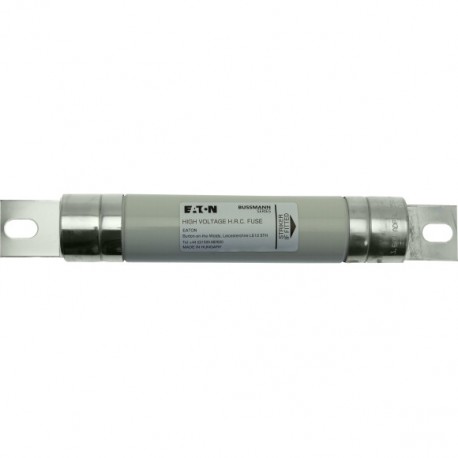

EATON - MOELLER 36KV 20Amp 2"  AIR FUSE 36KV 20Amp 2" AIR FUSE 36ADINA20 EATON ELECTRIC Air fuse-link, medium voltage, 20 A, AC 36 kV, 50.8 x 565mm,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

36KV 20Amp 2" AIR FUSE 36ADINA20 EATON ELECTRIC Air fuse-link, medium voltage, 20 A, AC 36 kV, 50.8 x 565mm,..

36KV 20Amp 2" AIR FUSE

36ADINA20

EATON - MOELLER

3 Pcs.

Air fuse-link, medium voltage, 20 A, AC 36 kV, 50.8 x 565mm, back-up, BS 36KV 20AMP 2" AIR FUSE Fuse, Air fuse-link, medium voltage, 20 A, AC 36 kV, 50.8 x 565mm, back-up, BS, cylindrical, BS 2692-1, Breaking Capacity 16 kA, Optional accessories, Supplied with

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-voltage air fuse link deployed on the primary side of utility and industrial transformers to isolate system faults. This Eaton Moeller device provides reliable back-up protection in demanding medium-voltage distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current: 20 A
  • Rated voltage: 36 kV
  • Voltage type: AC
  • Rated frequency: 50 Hz
  • Breaking capacity: 16 kA
  • Application: Primary side transformer protection
  • Length: 567 mm
  • Diameter: 51 mm
  • Performance category according to IEC 60282-1: Back-up
  • With striker: No
  • Standard: British Standard
  • Installation technique: Air

More info

▲
Air fuse-link, medium voltage, 20 A, AC 36 kV, 50.8 x 565mm, back-up, BS
Fuse, Air fuse-link, medium voltage, 20 A, AC 36 kV, 50.8 x 565mm, back-up, BS, cylindrical, BS 2692-1, Breaking Capacity 16 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
20 A
Rated voltage
AC 36 kV
Size
50.8 x 565mm
Utilization category
back-up
Breaking Capacity
16 kA
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS 2692-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
20 A
Rated voltage
36 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
16 kA
Utilization category
Other
Application
Primary side transformer protection
Length
565 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Air

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
