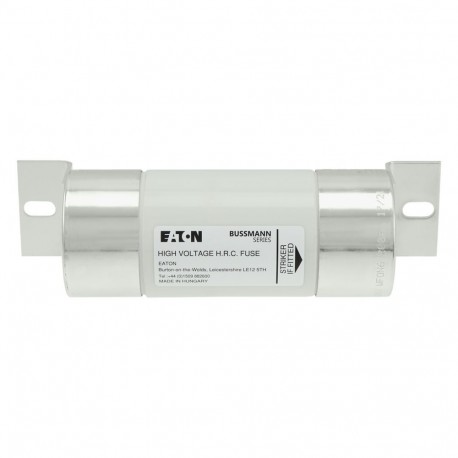

EATON - MOELLER 3.6WFON6200 3.6WFON6200 3-6WFON6200 EATON ELECTRIC Motor fuse-link, medium voltage, 200 A, AC 3.6 kV, 76 x 262 mm, back-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6WFON6200 3-6WFON6200 EATON ELECTRIC Motor fuse-link, medium voltage, 200 A, AC 3.6 kV, 76 x 262 mm, back-..

3.6WFON6200

36WFON6200

3-6WFON6200

EATON - MOELLER

3 Pcs.

3.6KV 200Amp 3" '6' Motorstart Fuse N/S 3.6WFON6200 - Motor fuse-link, medium voltage, 200 A, AC 3.6 kV, 76 x 262 mm, back-up, BS Fuse, Motor fuse-link, medium voltage, 200 A, AC 3.6 kV, 76 x 262 mm, back-up, BS, cylindrical with offset bolted tags, motor protection, BS2692-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for medium-voltage industrial control schemes, the Eaton Moeller 3.6WFON6200 motor fuse-link ensures safe disconnection during abnormal operating conditions. Motor protection links are vital for preventing thermal degradation in heavy industrial electrical drives. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 200 A
  • Rated voltage (EF000228): 3.6 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 0.05 kA
  • Application (EF000041): Motor protection
  • Length (EF001438): 192 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): No
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Motor fuse-link, medium voltage, 200 A, AC 3.6 kV, 76 x 262 mm, back-up, BS
Fuse, Motor fuse-link, medium voltage, 200 A, AC 3.6 kV, 76 x 262 mm, back-up, BS, cylindrical with offset bolted tags, motor protection, BS2692-1, Breaking Capacity 50 kA

General specifications
Product name
Eaton Bussmann series British standard dimensioned IEC medium voltage motor fuse
Part no.
3.6WFON6200
EAN
5027590475402
Product Length/Depth
192 millimetre
Product height
76 millimetre
Product width
76 millimetre
Product weight
507 gram
Compliances
Contact Manufacturer
Product Tradename
British standard dimensioned IEC
Product Type
Medium voltage motor fuse
Product Sub Type
None
Electrical data
Amperage Rating
200 A
Voltage rating
3.6 kV
Breaking capacity
50 A
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Product specifications
Application
motor protection
Fuse size
76 x 192 mm
Standard
British Standard
Compatible fuse clip
Used with
A3354730 Nickel-plated copper fuse clip

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Safety fuse systems (unspecified) ([email protected] [BAB265011])
Rated current
200 A
Rated voltage
3.6 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
0.05 kA
Utilization category
Other
Application
Motor protection
Length
192 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Air
