View larger
Images are for illustrative purposes only. Please refer to data sheet for details

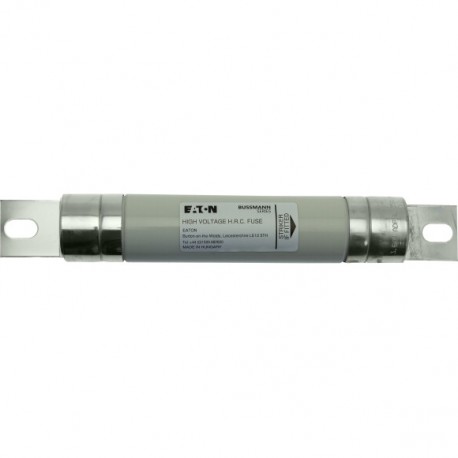

36KV 16AMP 2" AIR FUSE 36ADIH3616 EATON ELECTRIC Air fuse-link, medium voltage, 125 A, AC 12 kV, 76 x 359 mm..
36KV 16AMP 2" AIR FUSE
36ADIH3616
EATON - MOELLER
1 Pcs.
Air fuse-link, medium voltage, 125 A, AC 12 kV, 76 x 359 mm, back-up, BS, with striker, style 6B tags
36KV 16AMP 2" AIR FUSE
36KV 16AMP 2" AIR FUSE - Air fuse-link, 16 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, with striker
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Air fuse-link, 16 A, AC 36 kV, 16 kA, 2", 50.8 x 565mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 16 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS 2692-1, Breaking Capacity 16 kA
Delivery program
Product range
Fuse
Basic function
Air fuse-link
Rated current [I]
16 A
Rated voltage
AC 36 kV
Construction size
2"
Size
50.8 x 565mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
16 kA
usable for size/applications
protection of primary side transformers
used in fuse switch combination units, fuse bases and fuse switches
used in fuse switch combination units, fuse bases and fuse switches
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS 2692-1
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
16 A
Rated voltage
36 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
16 kA
Utilization category
Other
Application
Primary side transformer protection
Length
565 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
