> EATON - MOELLER > Bussmann Series Medium Voltage fuses and accessories > 36ADOSJ16

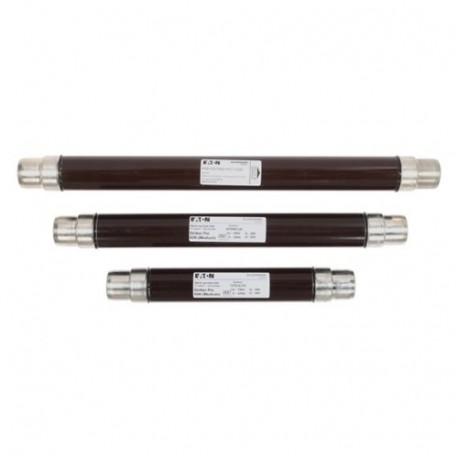

EATON - MOELLER 3.6KV 16Amp 2" 'J' DIN Fuse 3.6KV 16Amp 2" 'J' DIN Fuse 3.6ADOSJ16 3-6ADOSJ16 EATON ELECTRIC Fuse-link, medium voltage, 16 A, AC 3.6 kV,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3.6KV 16Amp 2" 'J' DIN Fuse 3.6ADOSJ16 3-6ADOSJ16 EATON ELECTRIC Fuse-link, medium voltage, 16 A, AC 3.6 kV,..

3.6KV 16Amp 2" 'J' DIN Fuse

36ADOSJ16

3-6ADOSJ16

EATON - MOELLER

3 Pcs.

Fuse-link, medium voltage, 16 A, AC 3.6 kV, 2", 51 x 192 mm, back-up, DIN, with striker 3.6KV 16Amp 2" 'J' DIN Fuse 3.6KV 16Amp 2" 'J' DIN Fuse - Fuse-link, medium voltage, 16 A, AC 3.6 kV, 40 kA, 2", 51 x 192 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 16 A, AC 3.6 kV, 2z, 51 x 192 mm, Back-up, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, IEC 60282-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
3.6ADOSJ16
EAN
5027590473705
UPC
051712525435
Product Length/Depth
192 mm
Product Height
51 mm
Product Width
51 mm
Product Weight
1100 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
IEC60282-1

Electrical data

Amperage Rating
16 A
Voltage rating
3.6 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
50.8 Ohms
Watt losses
18 W

Product specifications

Fuse indicator
With Striker
Construction size
51 x 192 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354710 Fuse clip

ETIM for 3.6ADOSJ16 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 16 A
Rated voltage (EF000228) 3.6 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 40 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Primary side transformer protection
Length (EF001438) 192 mm
Diameter (EF000551) 51 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) DIN
Release characteristic (EF000889) Other
Installation technique (EF001474) Air
